Eyeballing
the
NYC Bronx-Port Morris Gas Facility
|
This file is available on a Cryptome DVD offered by Cryptome. Donate $25 for a DVD of the Cryptome 10-year archives of 35,000 files from June 1996 to June 2006 (~3.5 GB). Click Paypal or mail check/MO made out to John Young, 251 West 89th Street, New York, NY 10024. Archives include all files of cryptome.org, cryptome2.org, jya.com, cartome.org, eyeball-series.org and iraq-kill-maim.org. Cryptome offers with the Cryptome DVD an INSCOM DVD of about 18,000 pages of counter-intelligence dossiers declassified by the US Army Information and Security Command, dating from 1945 to 1985. No additional contribution required -- $25 for both. The DVDs will be sent anywhere worldwide without extra cost. | |||
16 September 2004. One of the Eyeball series.
Maps from Mapquest.com

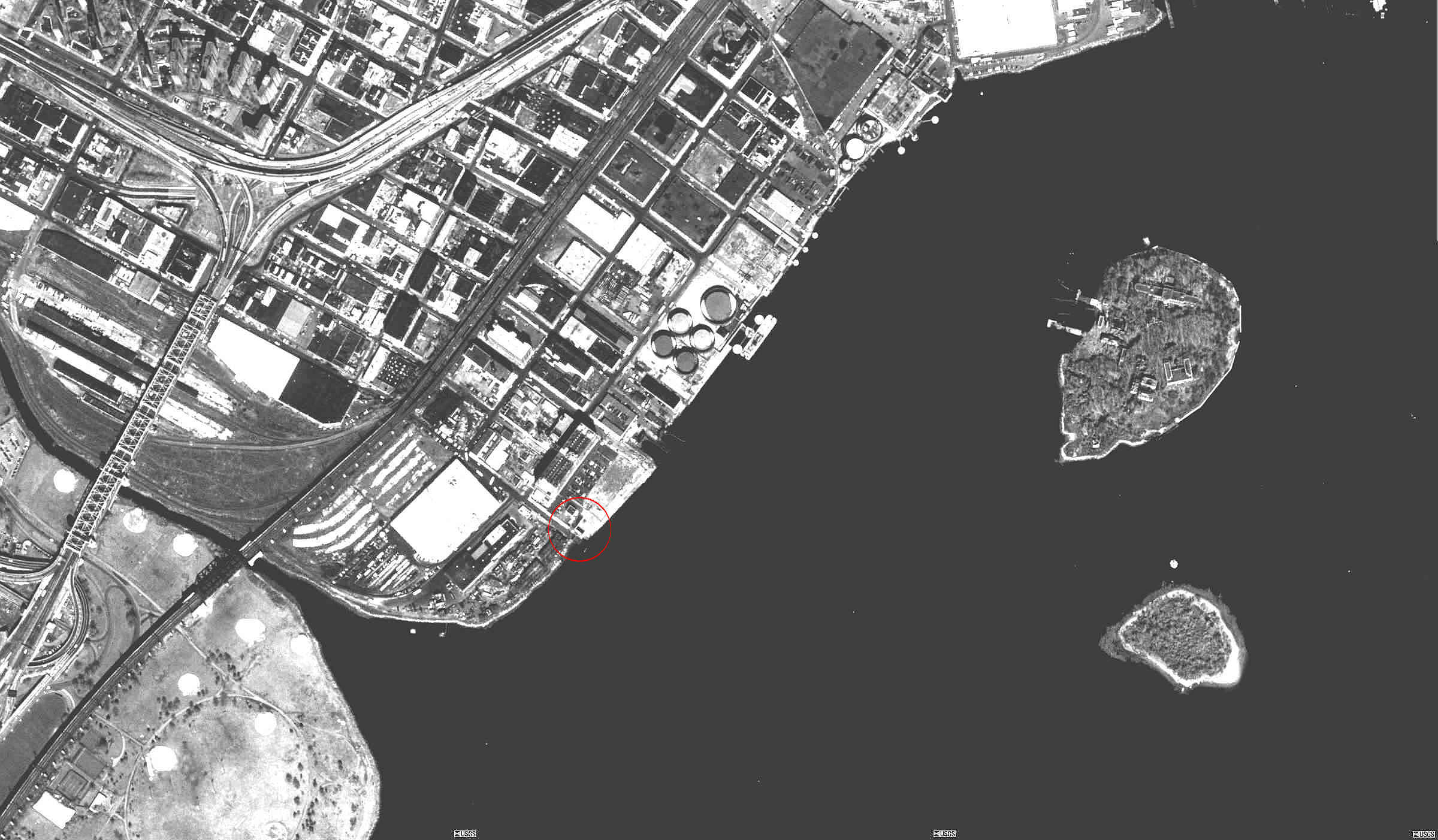

Source of aerial photos:
Terraserver-USA.
Ground level photos by Cryptome 15 September 2004.
Cryptome red-teamed Manhattan natural gas pipelines in the RNC Preparation Series. This red-teams the pipeline facility at Point Morris, The Bronx, and the adjacent gas-fueled electrical power generating plant. Con Edison is the owner/operator of the facilties. This gas facility has more security than those in Manhattan. (Red-teaming identifies vulnerabilities so they can be addressed.)

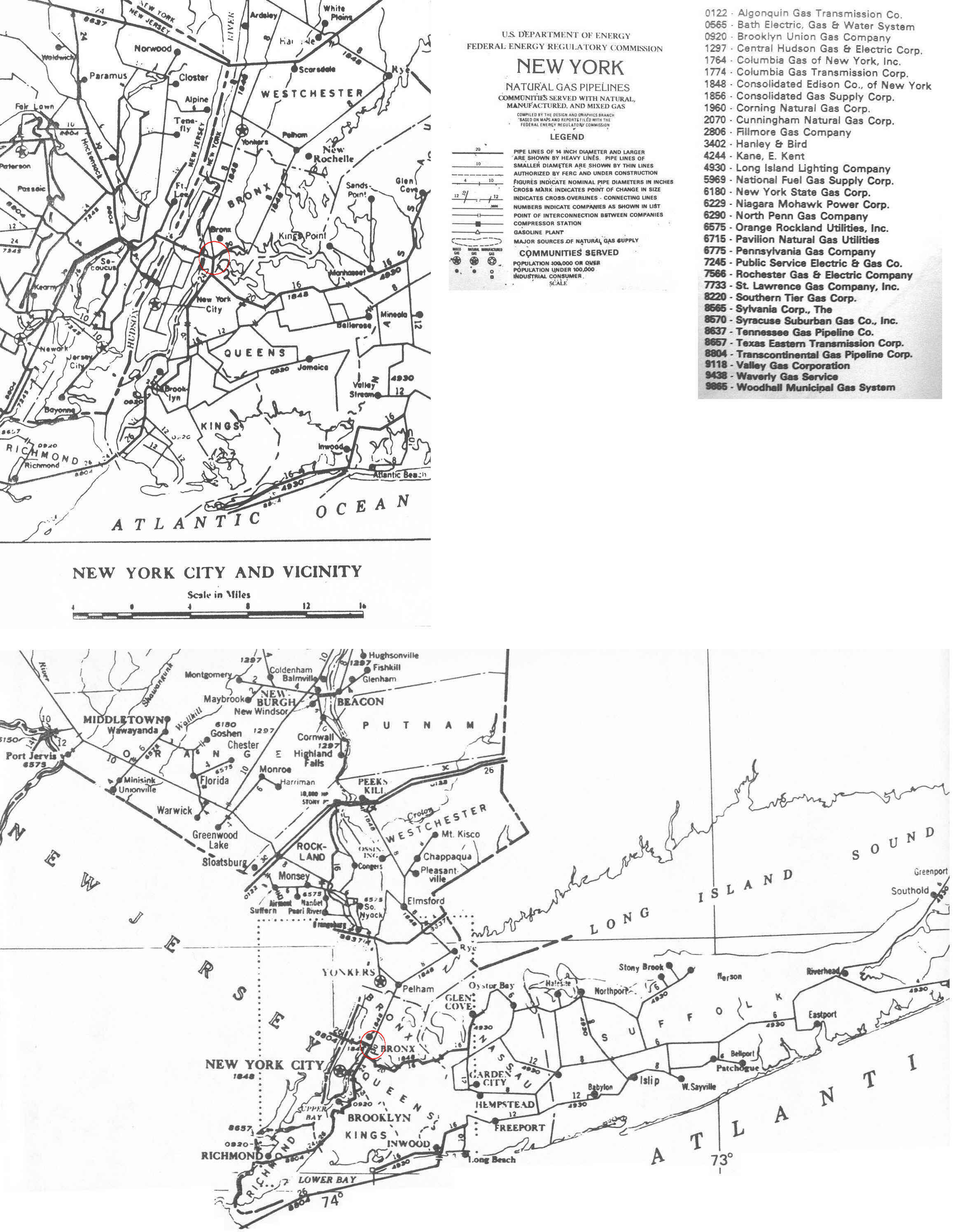

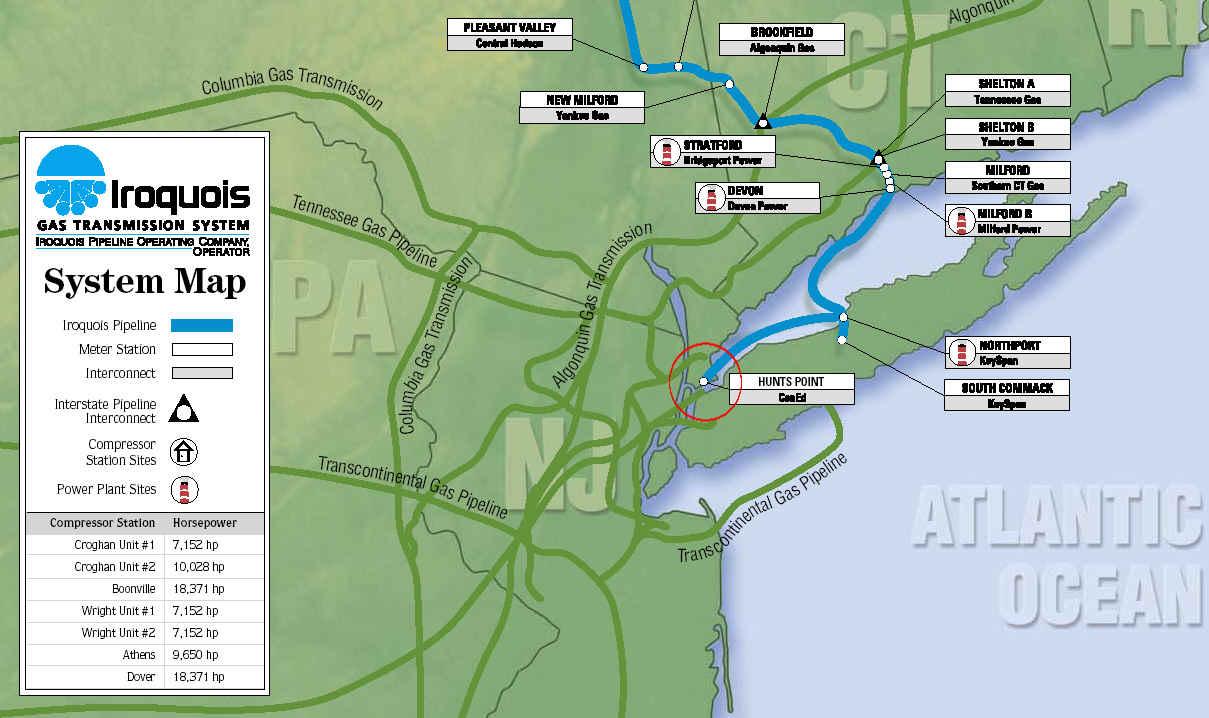

A small brick facility houses the landfall controls of the pipeline which crosses Brooklyn and the East River into The Bronx and connects to the transcontinental pipeline which crosses upper Manhattan and the Harlem River into The Bronx, as shown on the NYC gas pipeline maps below. The pipeline serves The Bronx and Westchester County. It probably connects to a nearby pipeline by Iroquois Gas Transmission which delivers gas to the city across New York State from the north and underwater of Long Island Sound to Hunt's Point.
The facility was located by walking along the route of the pipeline coming from Manhattan, assisted by excavation markings on streets and sidewalks which identified the gas pipe below. Along the route a number of gas regulator/vents were spotted. More on those following the facility photos.
|
|
 |
 |
 |
 |
 |

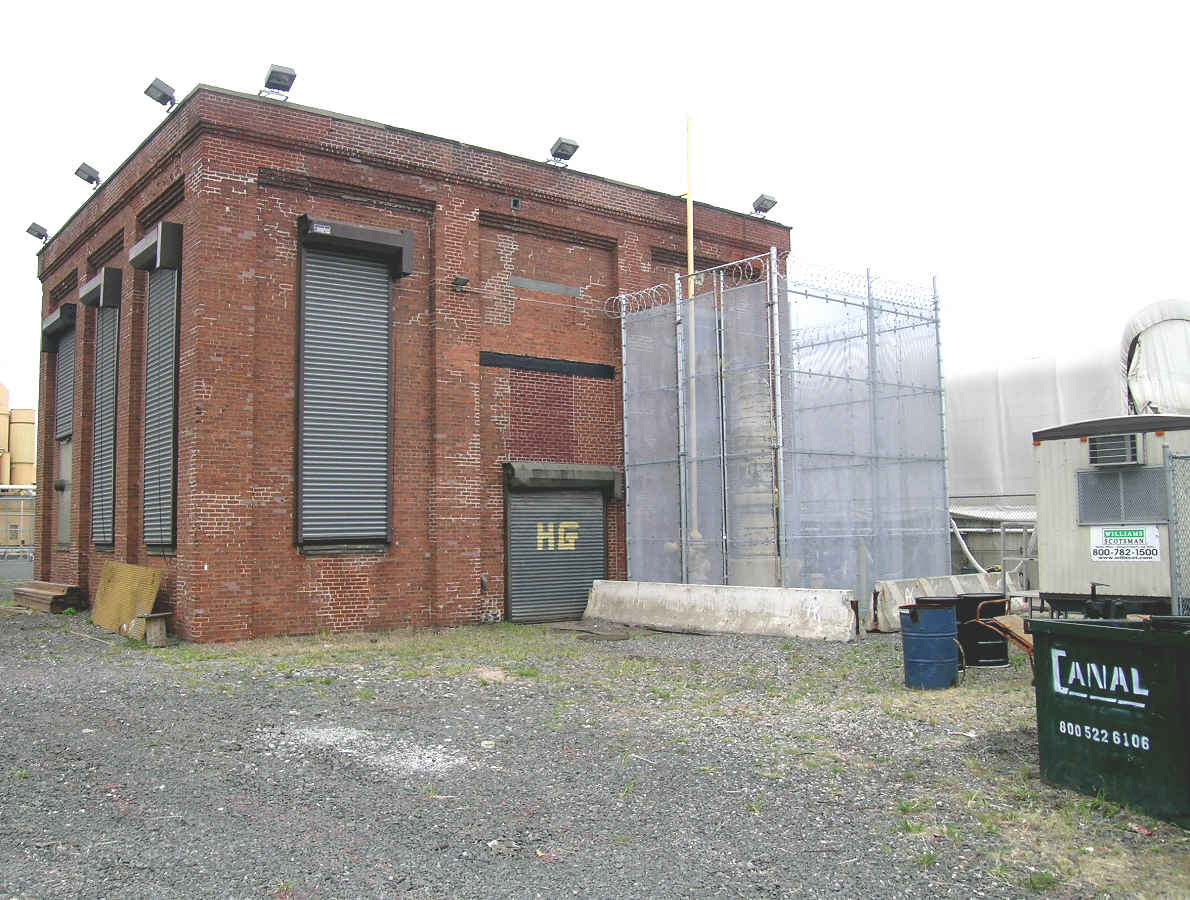

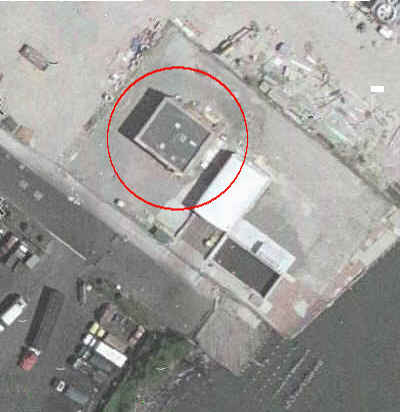

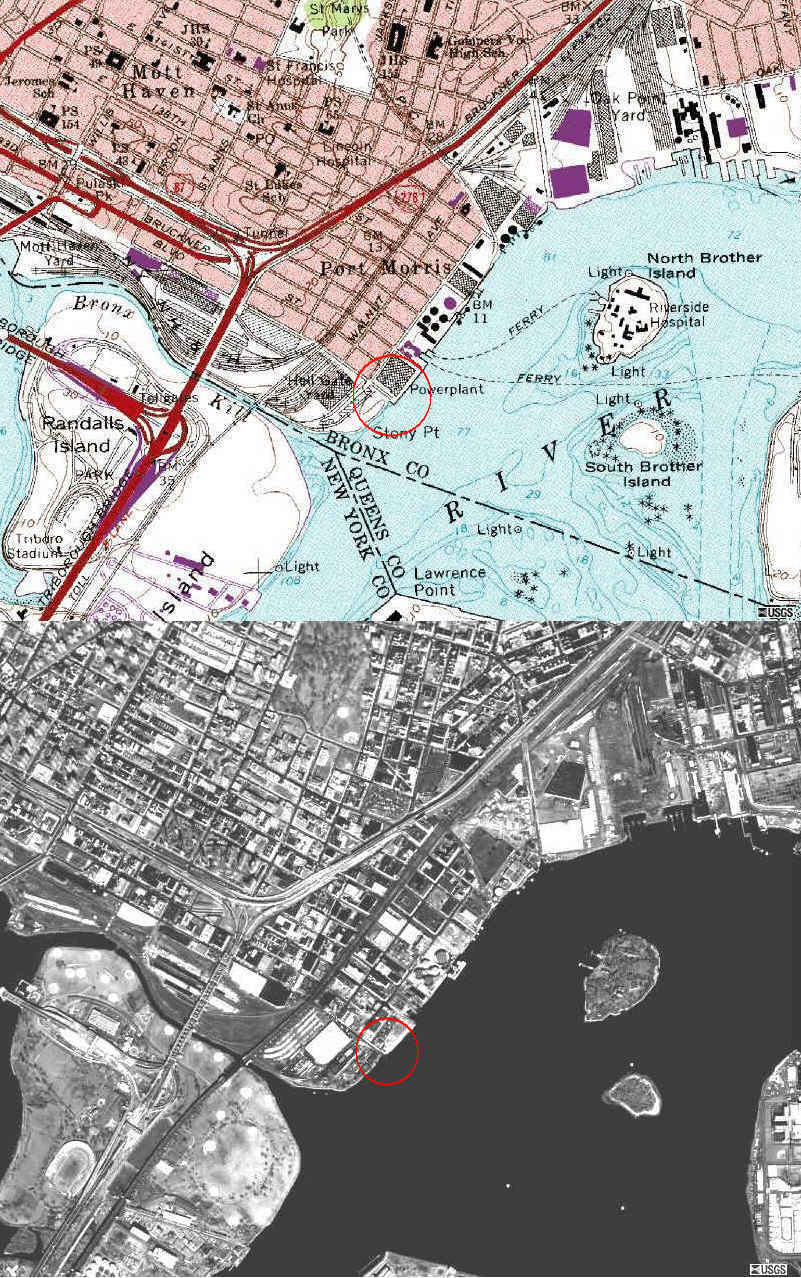

| Natural gas facility located at East 132nd Street and Locust Avenue,
The Bronx.

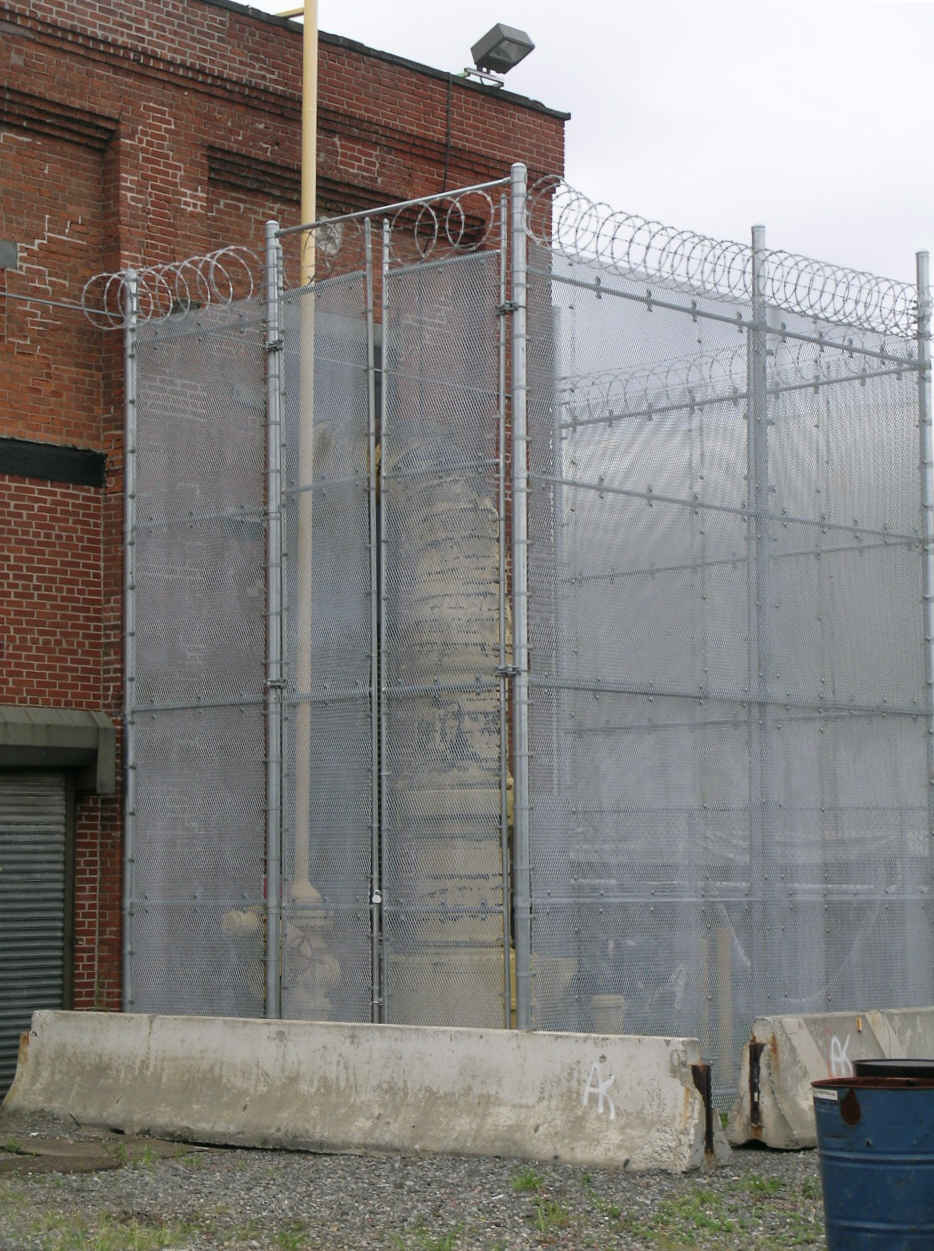

This photo shows a security fence and concrete barricades around the gas
pipe, added since the aerial
|
| South view of the pipe and security measures.
|

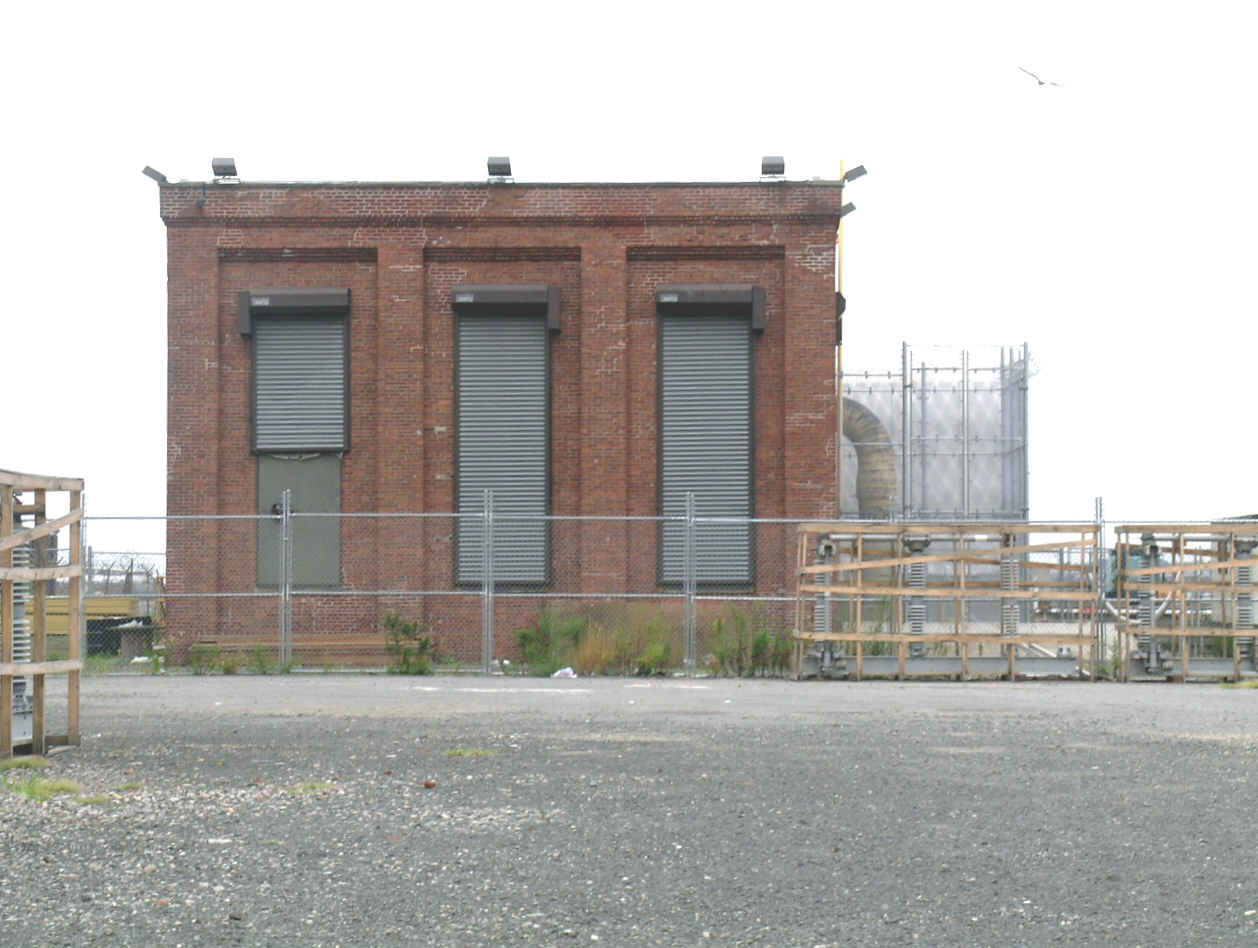

| West side of facility.
|

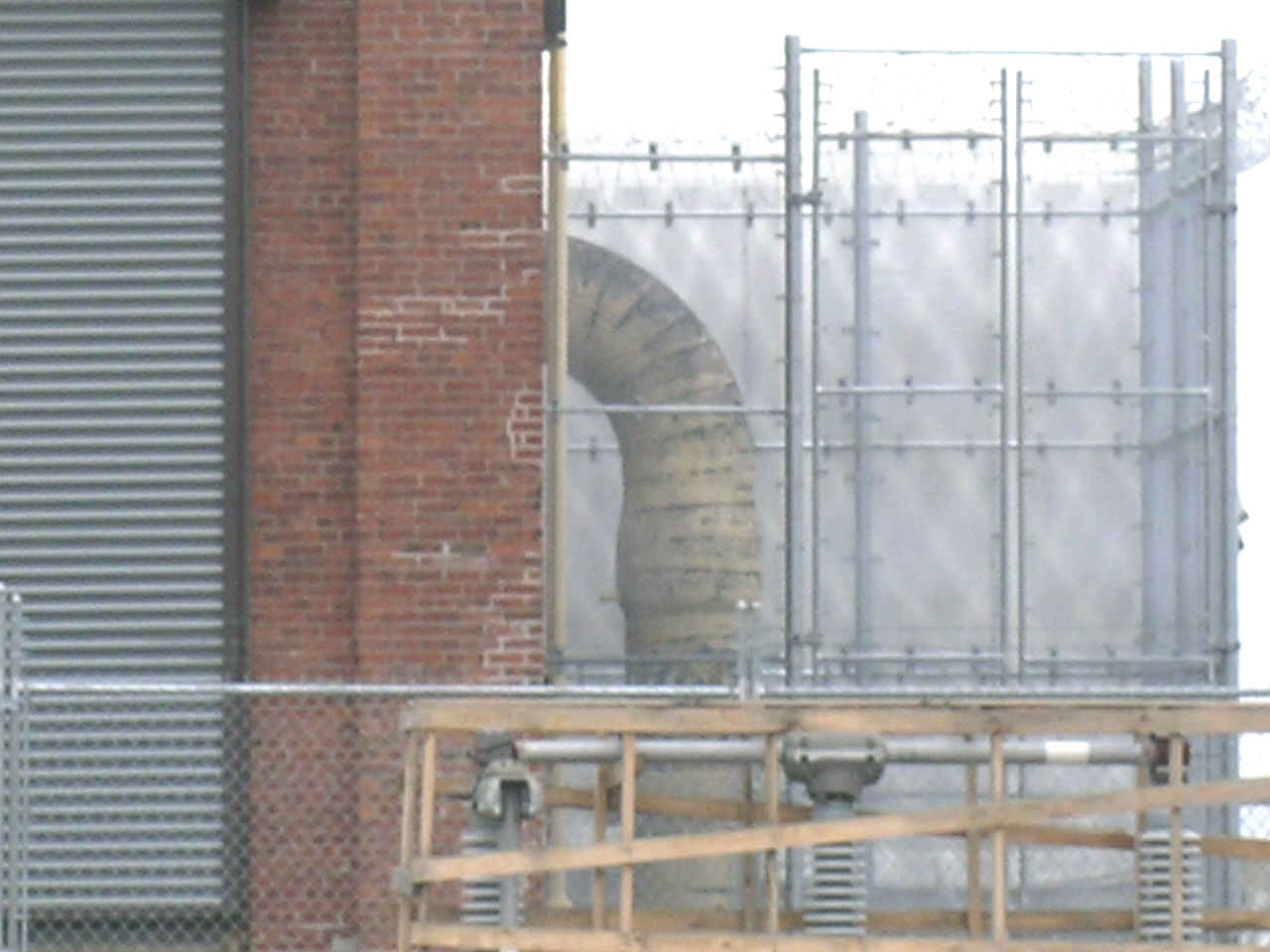

| West side of gas pipe.
|

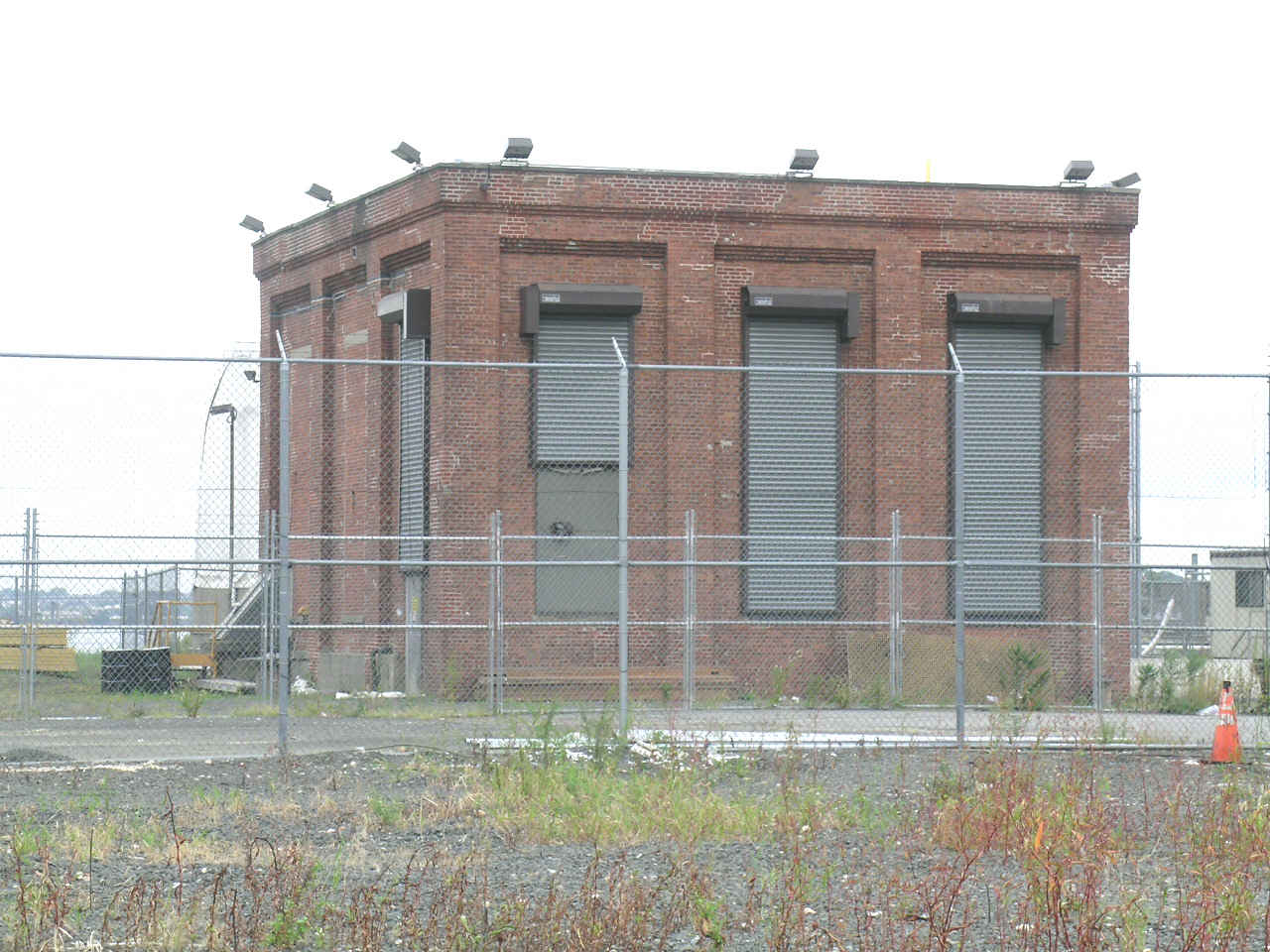

| West and north facade of gas facility.
|

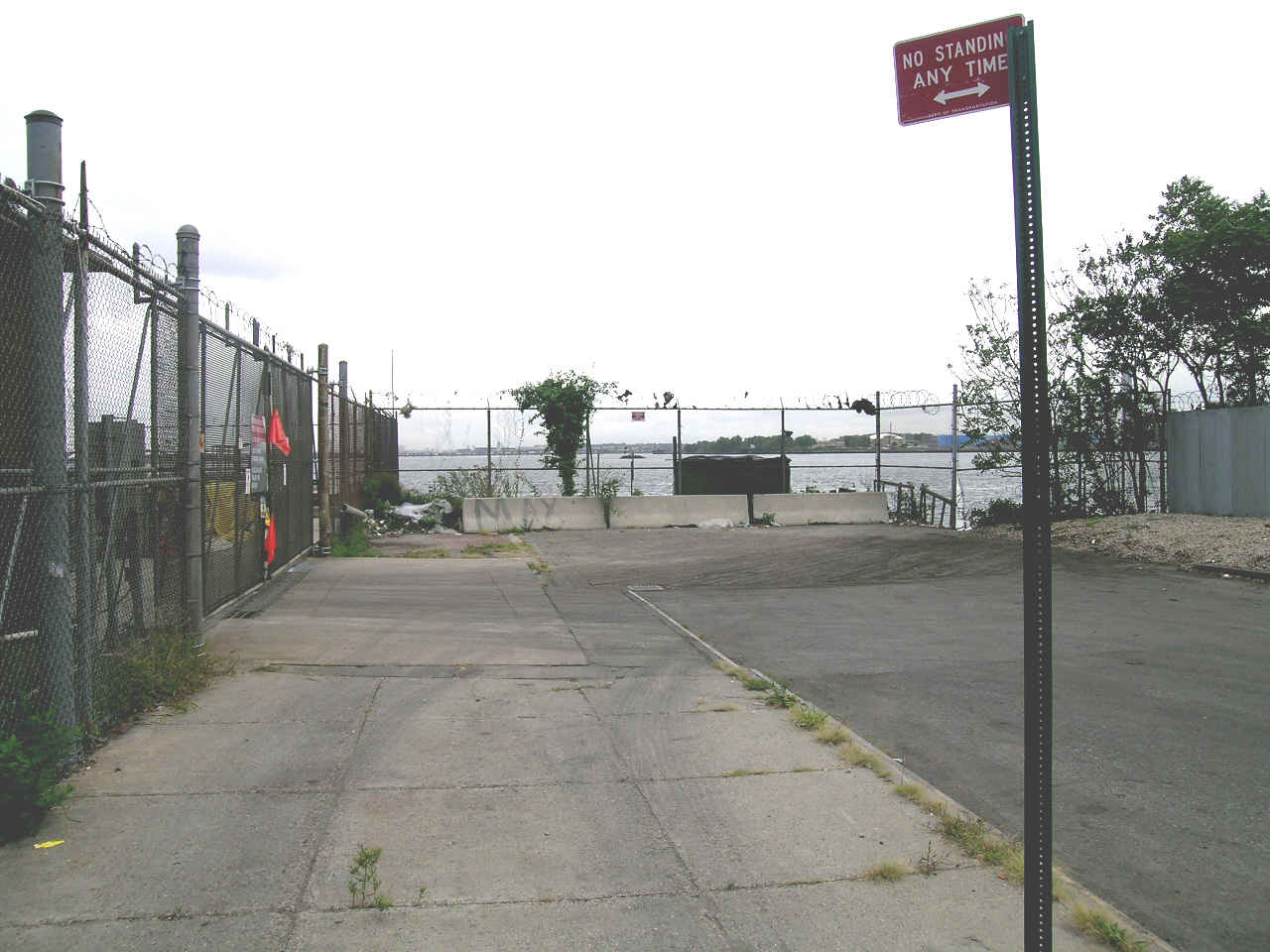

| Looking east toward the pierhead where the pipeline comes into the
site from the East River. Gate to facility at left.
|

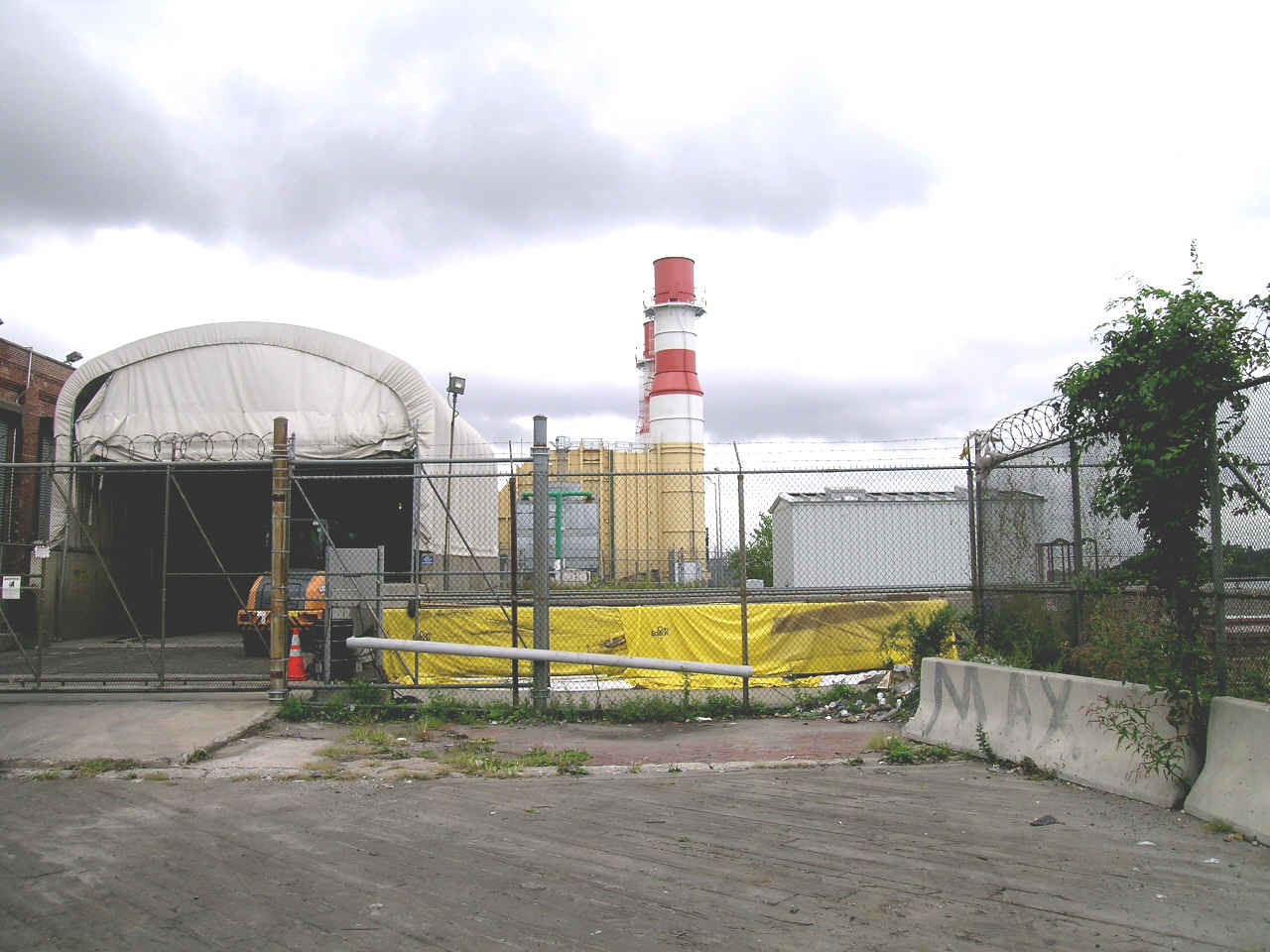

| Looking north toward the adjoining power plant. Canvas shelter is
for truck washing.
|

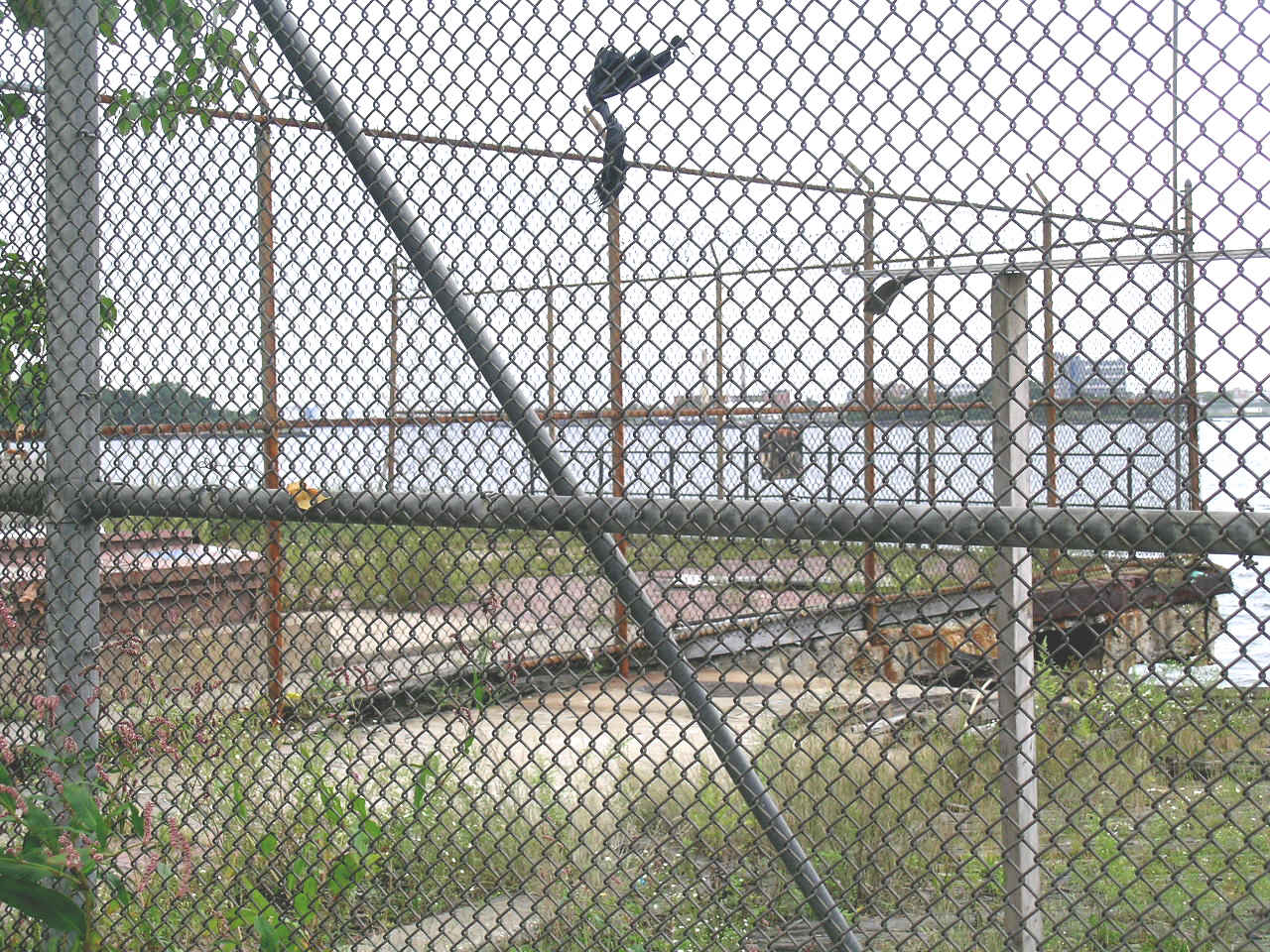

| Looking northeast toward bulkhead.
|

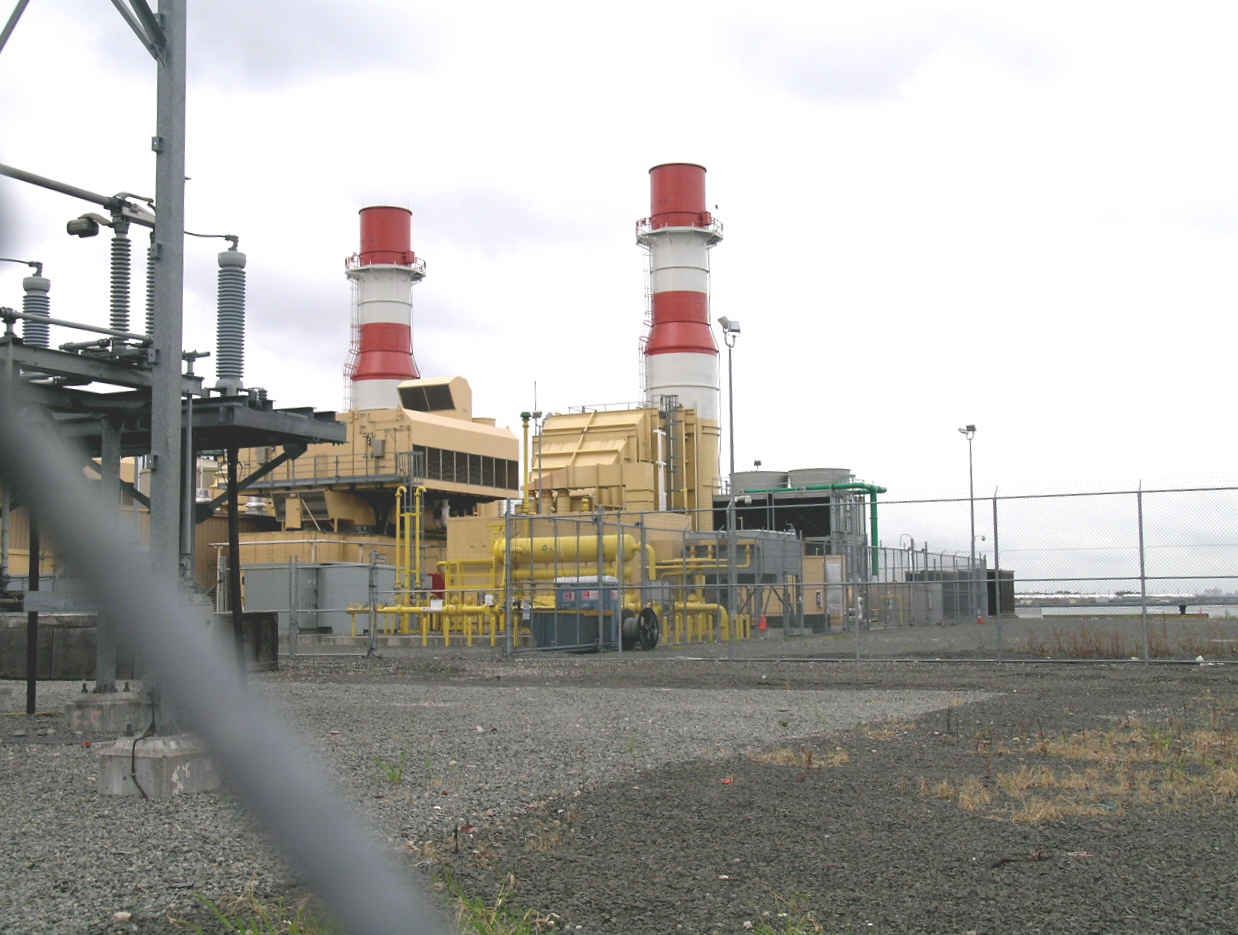

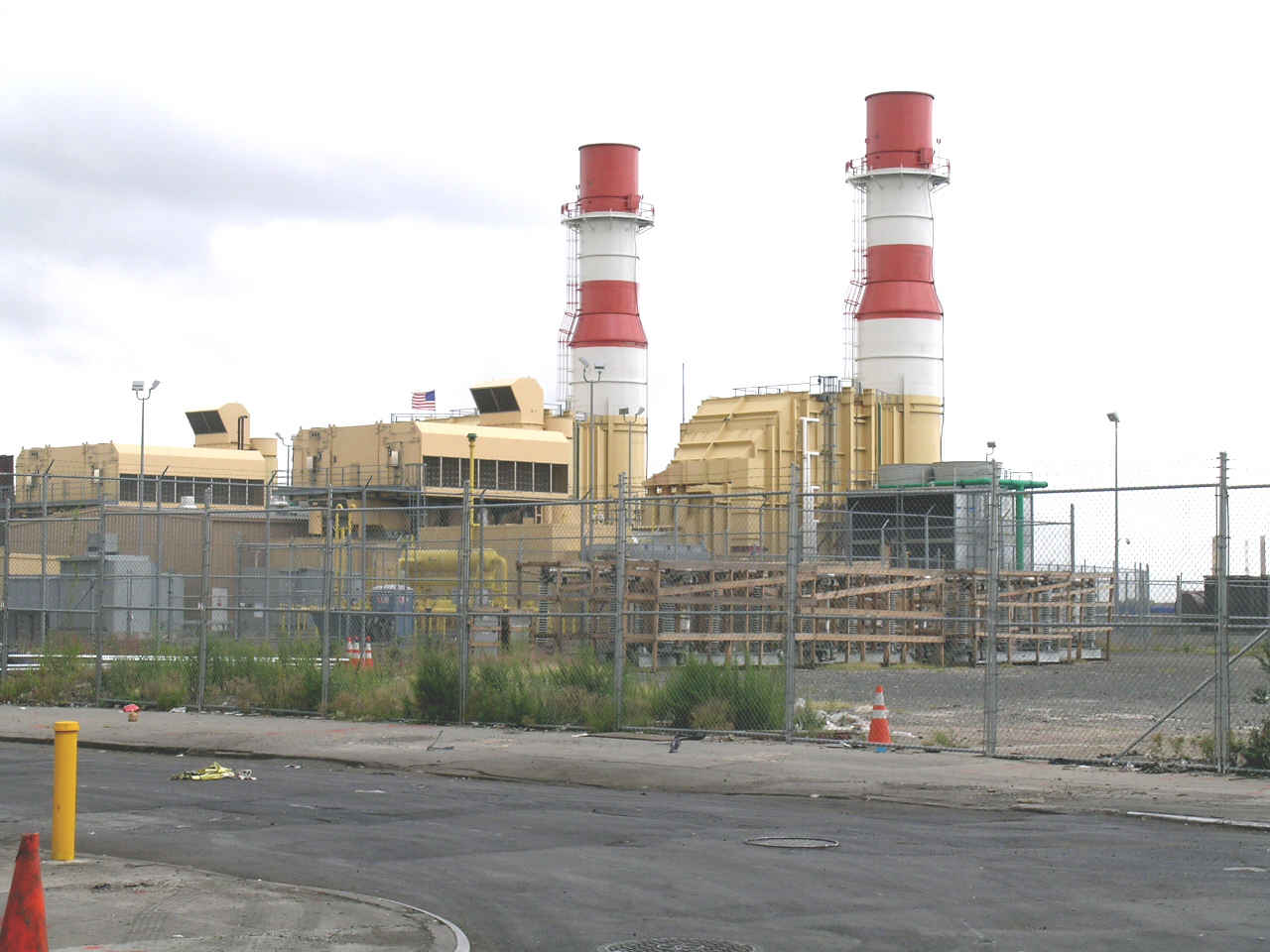

| Gas-fueled power plant, looking north east.
|

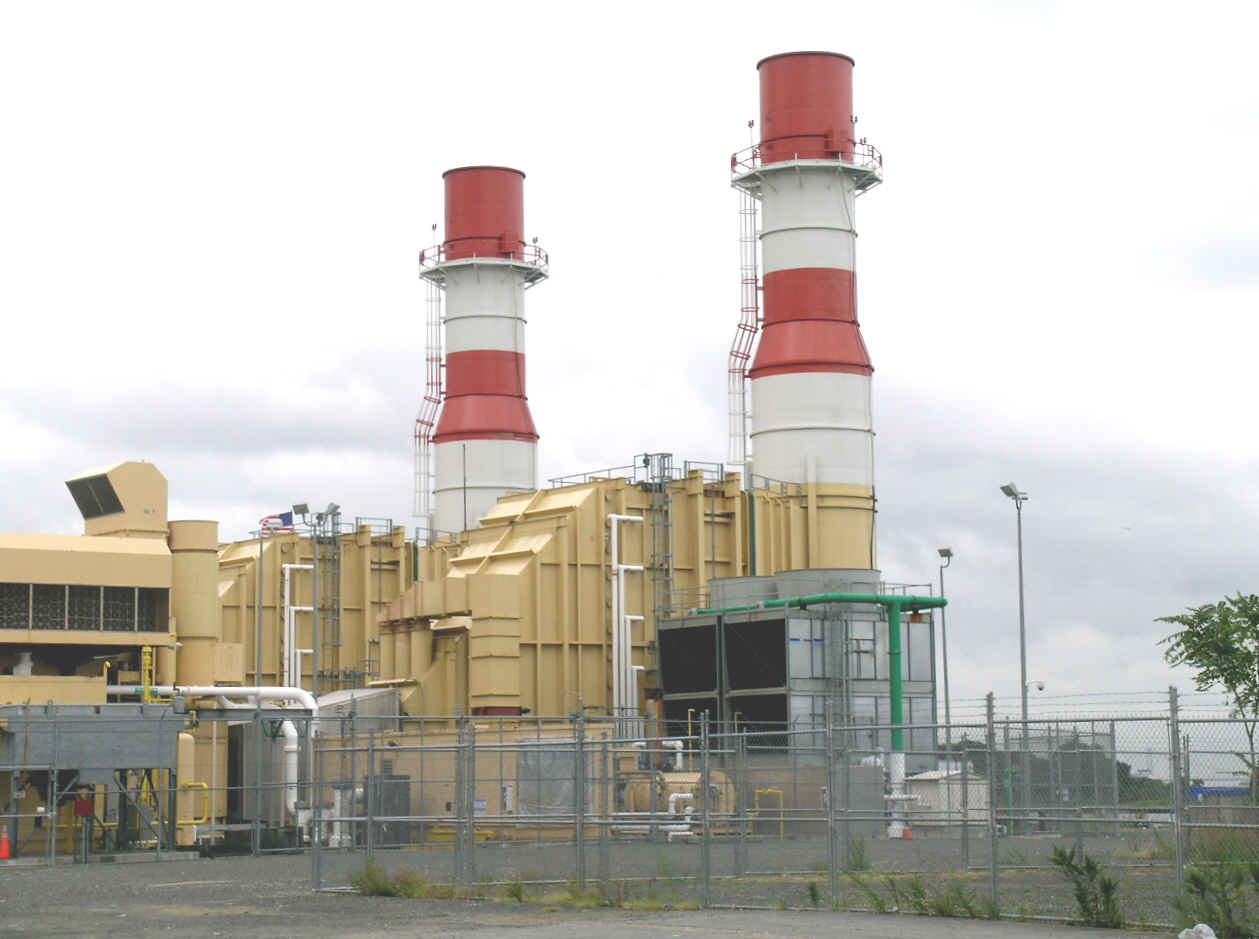

| Gas-fueled power plant, looking north east.
|
| Gas-fueled power plant, looking north east.
|
Tracing the route of the pipeline from Manhattan and the Harlem River across the southern Bronx.

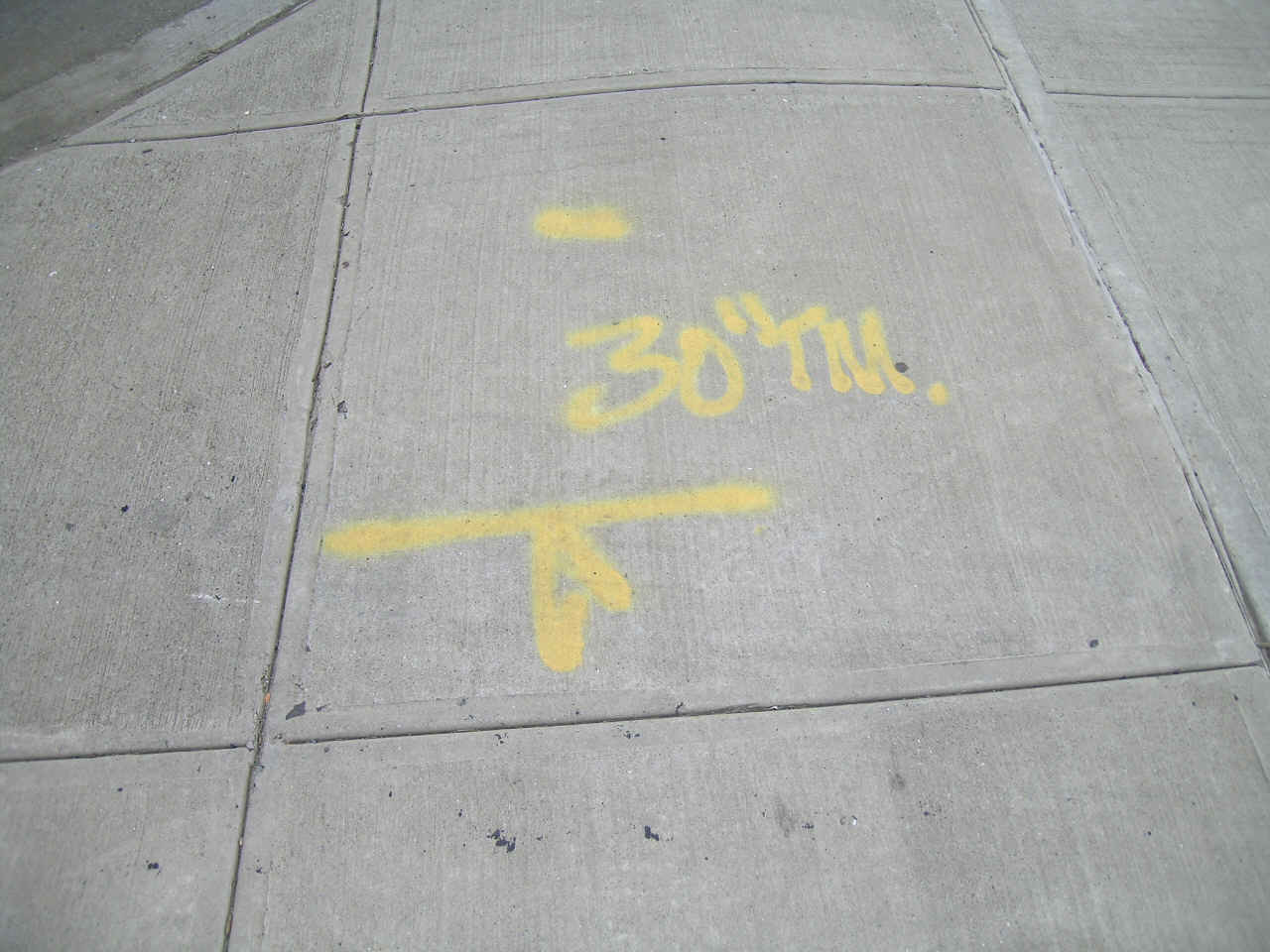

| Yellow (indicating natural gas) exacavation marks trace the path of
a 30" main gas pipeline from Manhattan across the southern Bronx. This mark located next to the New York Post printing plant.
|

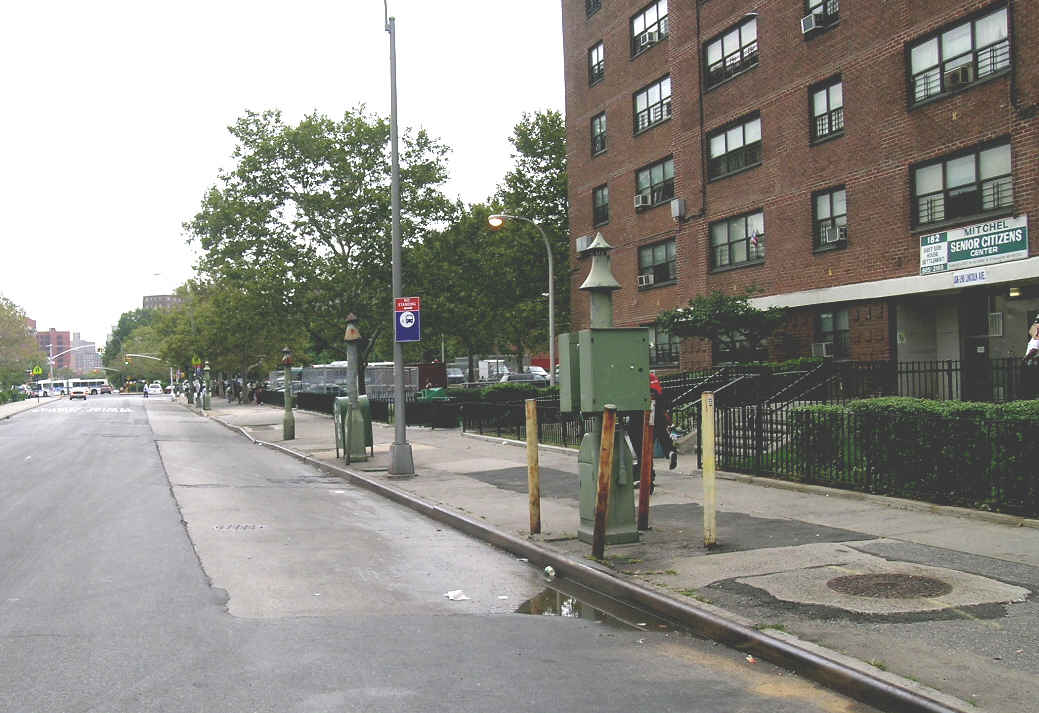

| An unusual row of five regulator/vents, located on Lincoln Avenue
near East 138th Street, along the route of a gas pipeline heading north to The Bronx and Westchester County. The boxes on the vents contain pressure-regulating remotely-controlled devices.
|

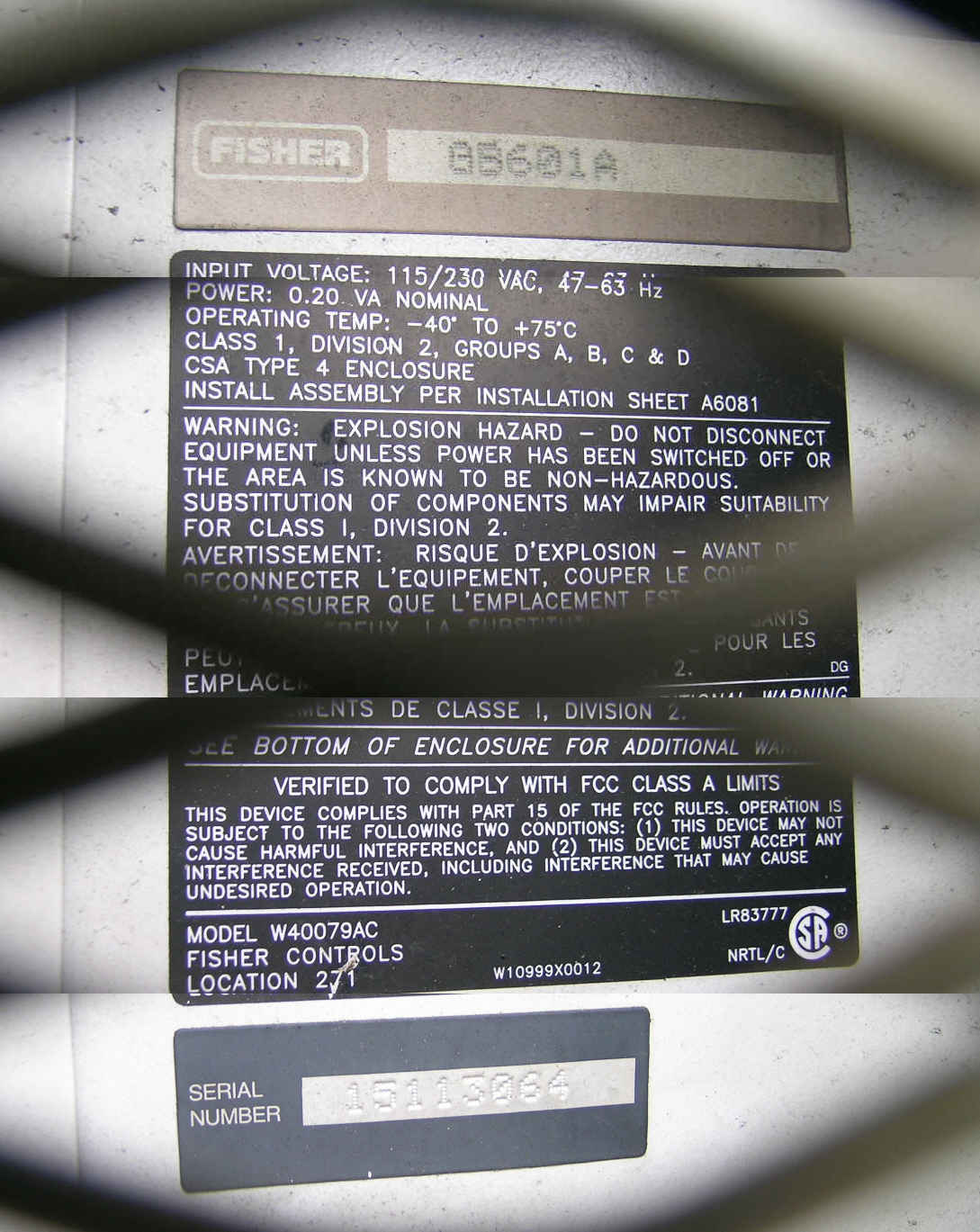

| One of the Lincoln Avenue boxes had an open-web enclosure which allowed
viewing of the interior regulating device identification and specifications. Note the FCC classification. Fisher Controls on the web.
|

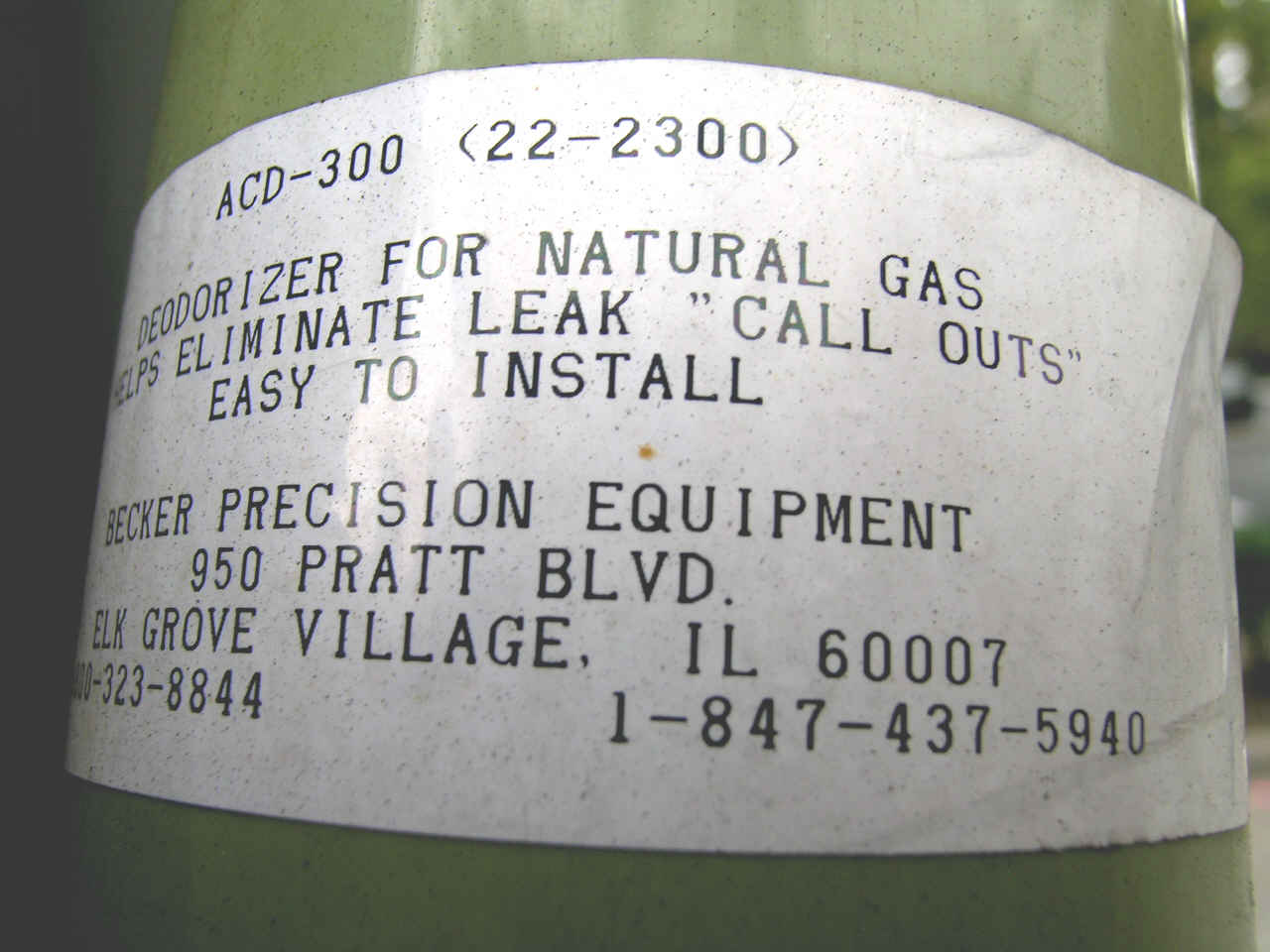

| A gas deodorant tag on one of the Lincoln Avenue vents. Bizarrely,
this device removes the strong odor of natural gas which is added to the
original odorless product so a leak can be easily detected. Con Ed, like
other gas marketers, is notoriously slow in repairing leaks. So these devices
remove the odor so report of leaks are reduced, to hell with public safety.
http://www.bpe950.com/becker/products/supply-gas/sg-acd300.htm Description: The ACD-300 Activated Charcoal Deodorizer is designed to remove odorant from natural gas "bleed" associated with natural gas control instrumentation. The ACD-300 saves money by minimizing leak call outs in populated areas. The ACD-300 may be installed on all Becker Precision Equipment control instrumentation that discharges natural gas to atmosphere. The ACD installs on the vent exhaust port of the control instrument and is applicable for units that "bleed" constantly or intermittently. The Becker ACD-300 contains a specially impregnated activated charcoal component that provides greater absorption of natural gas odorant as compared to other types of charcoal deodorant. ACD-300's are sold in prepackaged quantities of four (4) per box.
|

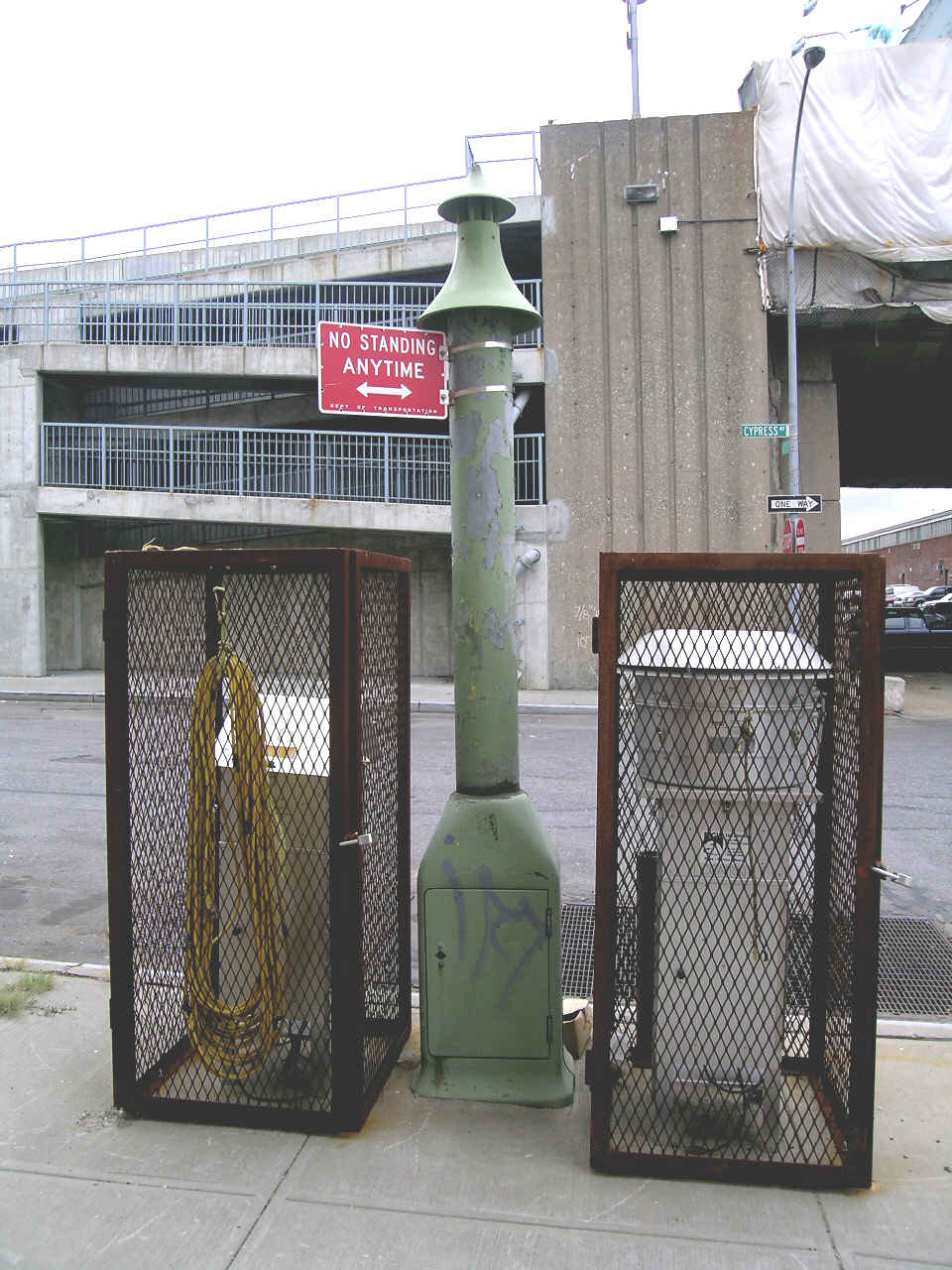

| This regulator at East 132nd Street and Cypress Avenue has two air
quality monitors adjacent. The air among residential and industrial buildings was noxious with garbage odor, the main source shown in following photos.
|

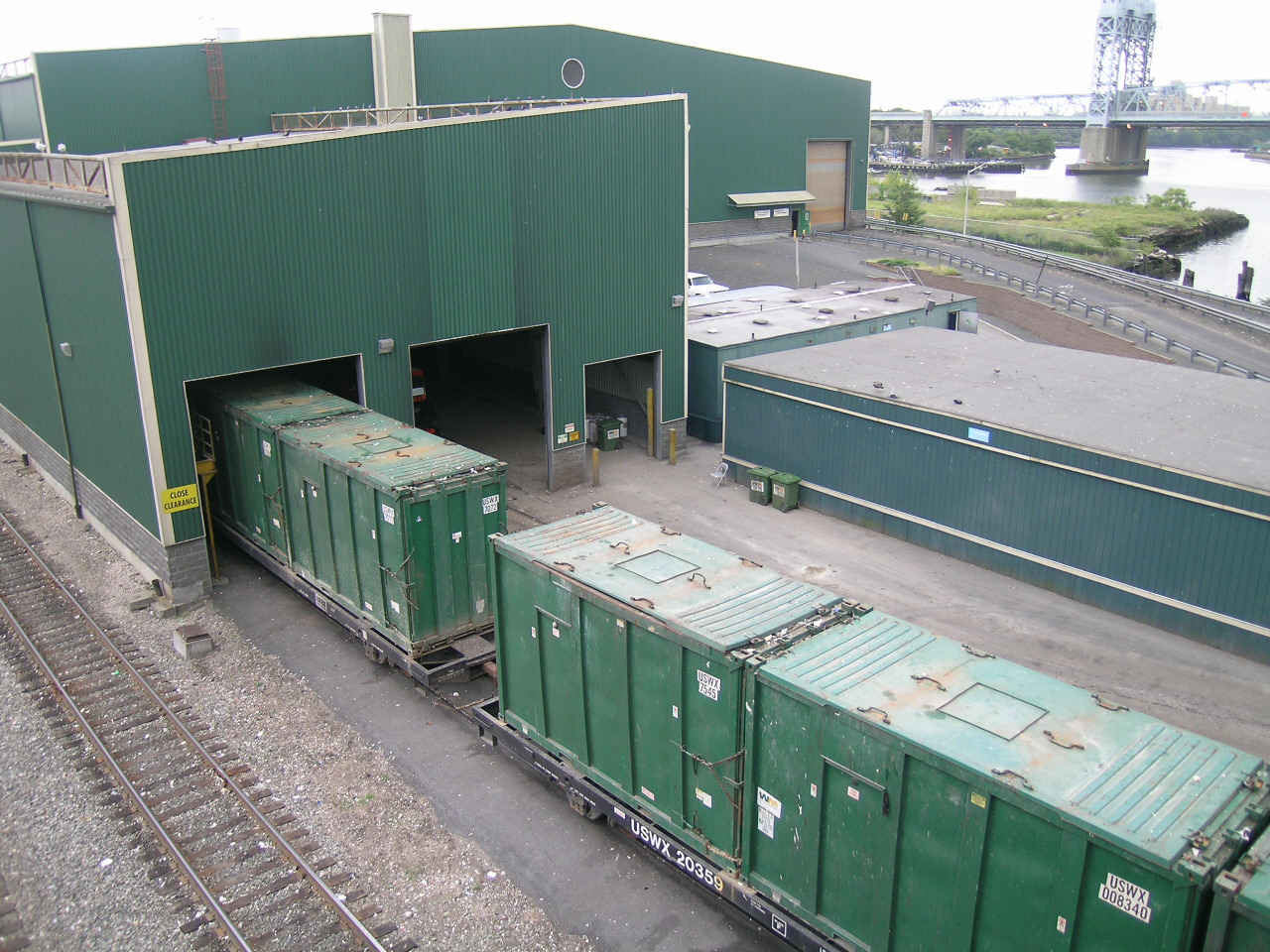

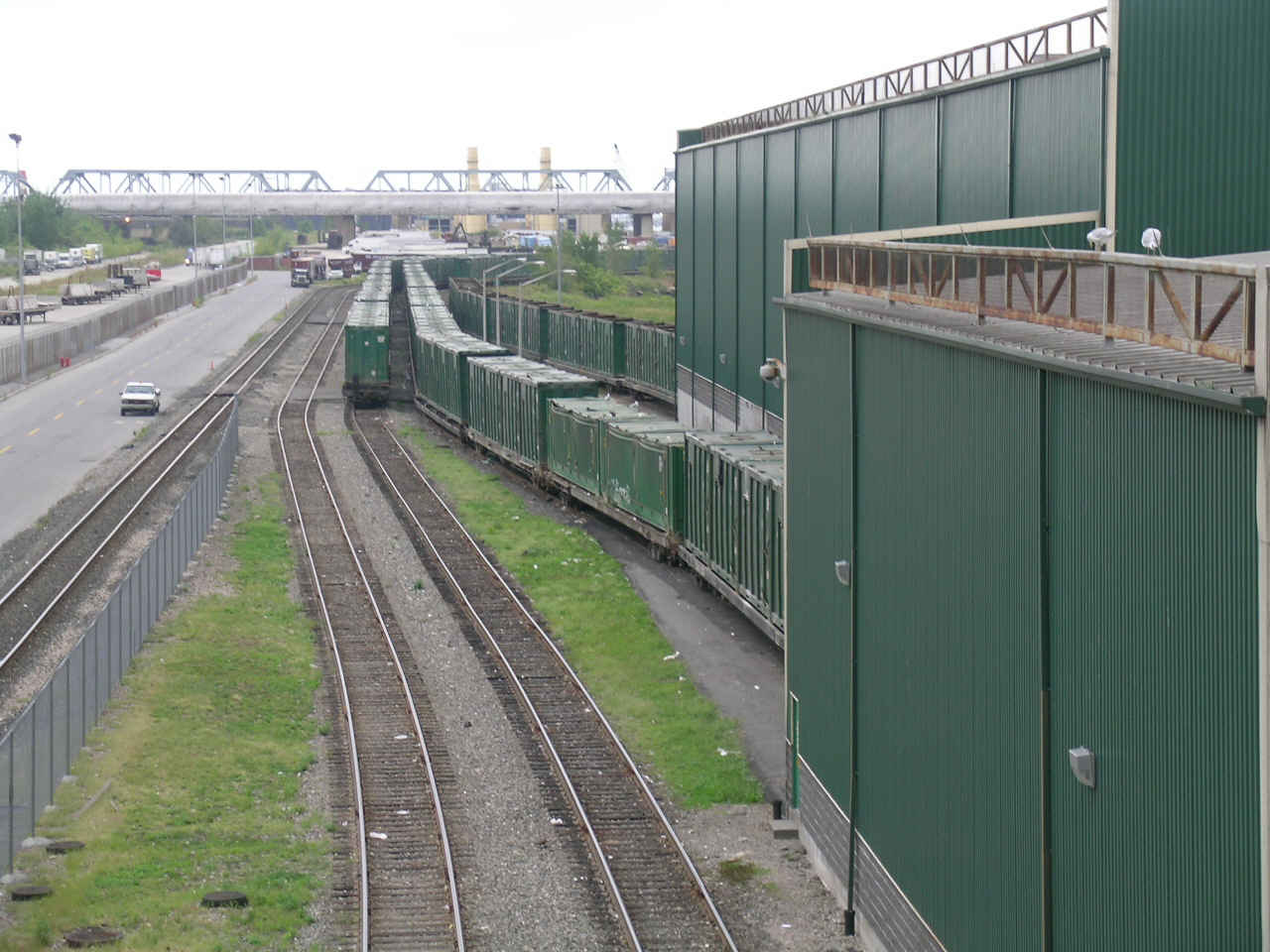

| New York City's special train for shipping garbage to other parts
of the earth, principally to West Texas, where much of NYC's natural gas originates. While Texas gas remains plentiful, NYC has run out of garbage dumps for no neighborhood will allow them. Fresh Kills Landfill on Staten Island closed a few years ago, but was temporarily used by the FBI for WTC-evidence forensic work. Long before the FBI sifted the WTC remains, Fresh Kills was reputed to be the favorite dumping ground of murder victims. No reports yet of the garbage train inheriting that role.
|
