Air Force One Anti-Missile Countermeasures

This file is available on a Cryptome DVD offered by Cryptome. Donate $25 for a DVD of the Cryptome 10-year archives of 35,000 files from June 1996 to June 2006 (~3.5 GB). Click Paypal or mail check/MO made out to John Young, 251 West 89th Street, New York, NY 10024. Archives include all files of cryptome.org, cryptome2.org, jya.com, cartome.org, eyeball-series.org and iraq-kill-maim.org. Cryptome offers with the Cryptome DVD an INSCOM DVD of about 18,000 pages of counter-intelligence dossiers declassified by the US Army Information and Security Command, dating from 1945 to 1985. No additional contribution required -- $25 for both. The DVDs will be sent anywhere worldwide without extra cost.

7 August 2006

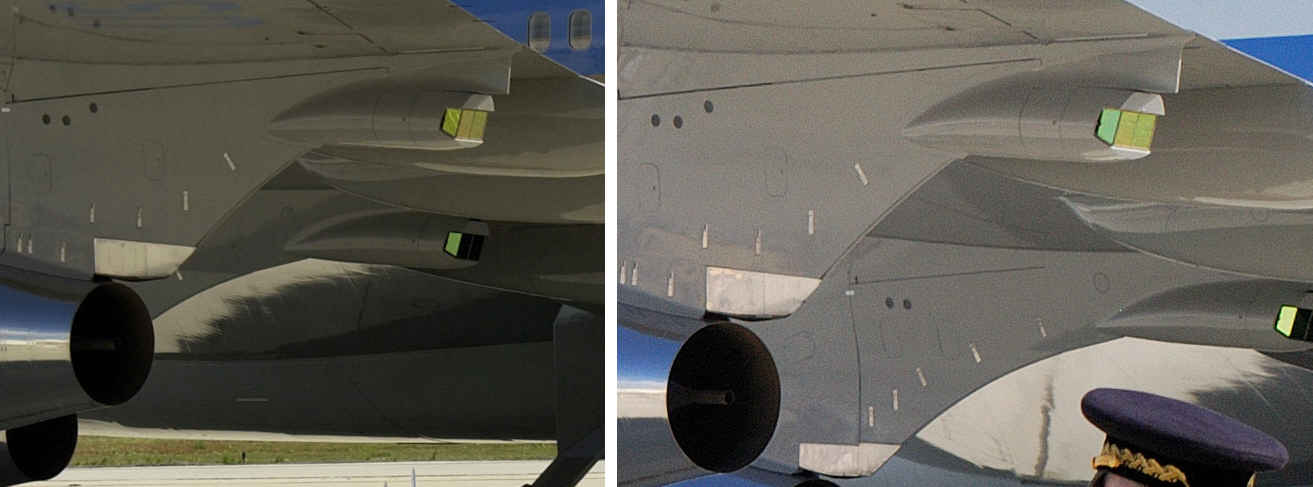

Air Force One MANPAD Infrared Countermeasures, June 9, 2004

Left: http://www.dodmedia.osd.mil/Assets/2004/Navy/DN-SD-04-15604.JPEG (cropped)
Right: http://www.dodmedia.osd.mil/Assets/2004/Navy/DN-SD-04-15606.JPEG (cropped)

22 April 2006. Marine One Anti-Missile Countermeasures: http://cryptome.org/hmx1-ircm.htm

12 April 2006

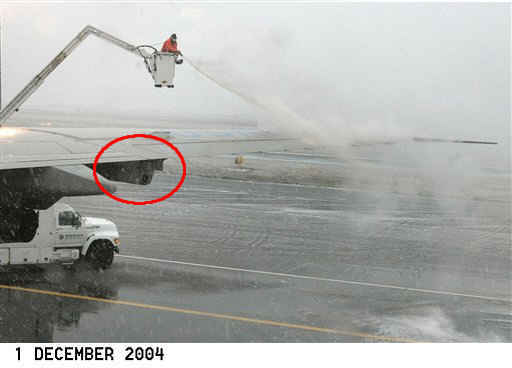

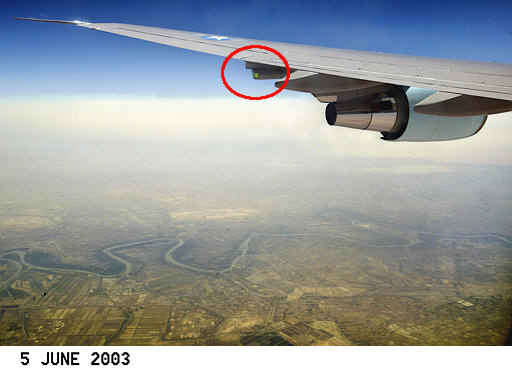

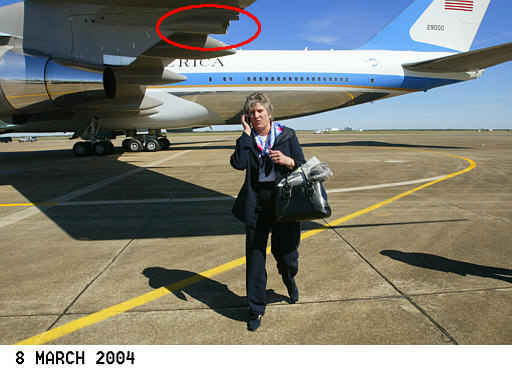

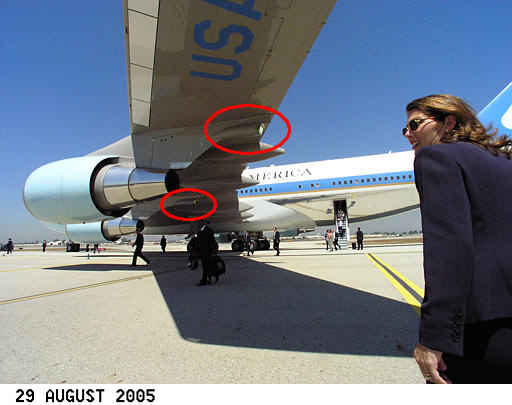

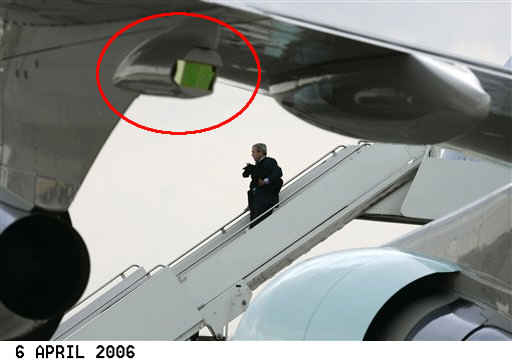

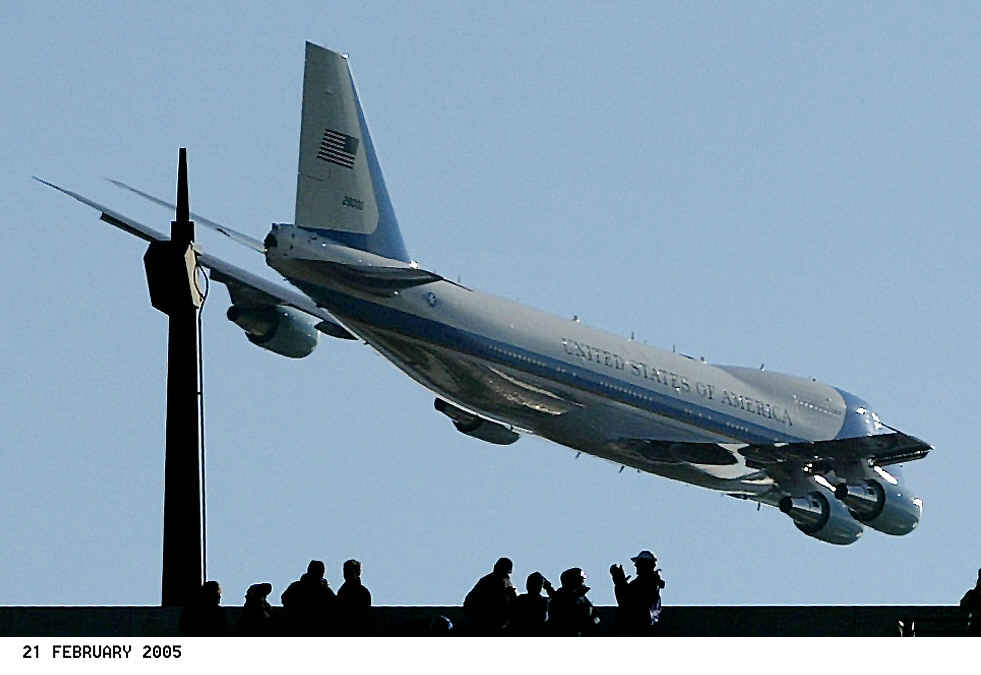

Infrared countermeasure (IRCM) systems are located above each engine exhaust to divert or jam heat-seeking IR missiles by zapping sensor and guidance systems. A description of the system (or a previous installation):

http://www.globalsecurity.org/military/systems/aircraft/systems/an-alq-204.htm

http://www.armada.ch/04-6/article-full.cfm

For transport and even business jet aircraft, with customers including Air Force One, BAE produces the AN/ALQ-204 Matador; a modular system consisting of multiple transmitters and controls. Each transmitter contains a four to twelve-kW source that emits pulsed infrared radiation to combat multi-IR guided missiles. The Matador configuration is certified by the US Federal Aviation Administration.

Listing of airborne countermeasures systems:

http://www.designation-systems.net/usmilav/jetds/an-alq2aly.html

AP Photos (first six)

[Image]
Source
http://www.baesystems.com/dubai/indexuk1.htm
MATADOR™

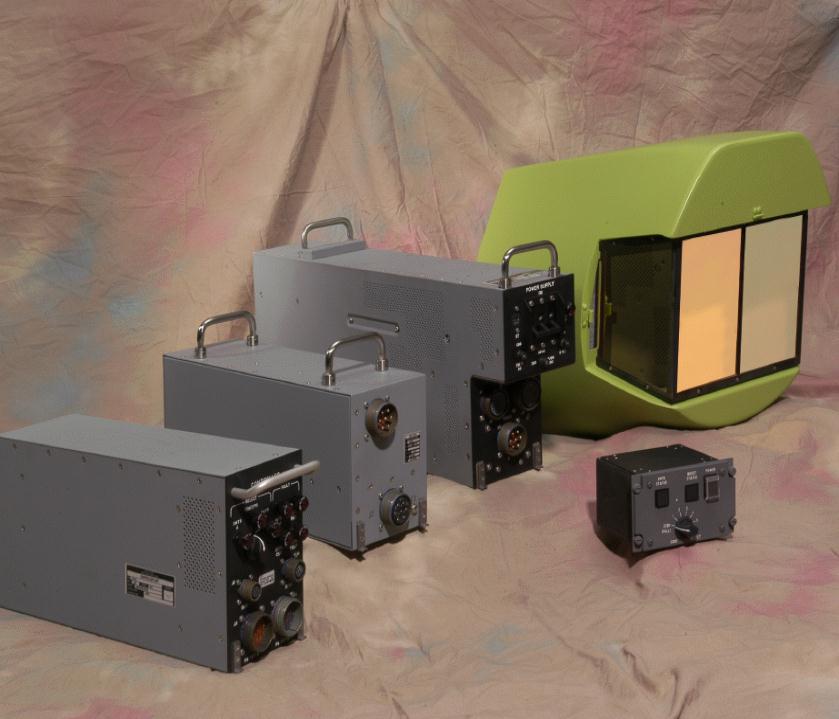

The MATADOR system protects a wide variety of multi-engine jet transport aircraft against first generation IR missile threats. The modular system design provides flexibility for multi-platform applications, and provides IR missile jamming capability to defeat multiple threats at the same time. MATADOR is a modular system, which is tailored to each aircraft to meet specific customer requirements. The system can be installed on new or in-service aircraft. Once the system is turned on prior to flight, MATADOR operates continuously without operator intervention. The MATADOR system produces coverage for business jets as well as large aircraft. MATADOR was originally designed for and certified on large civil type aircraft.

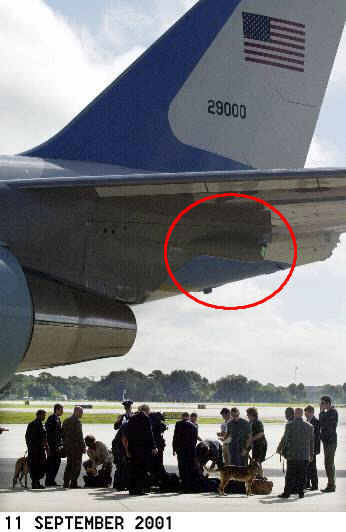

IRCM and perhaps other countermeasures at the tail of the fuselage.
Source

AP Photos (first six)



Source http://www.baesystems.com/dubai/indexuk1.htm MATADOR™ The MATADOR system protects a wide variety of multi-engine jet transport aircraft against first generation IR missile threats. The modular system design provides flexibility for multi-platform applications, and provides IR missile jamming capability to defeat multiple threats at the same time. MATADOR is a modular system, which is tailored to each aircraft to meet specific customer requirements. The system can be installed on new or in-service aircraft. Once the system is turned on prior to flight, MATADOR operates continuously without operator intervention. The MATADOR system produces coverage for business jets as well as large aircraft. MATADOR was originally designed for and certified on large civil type aircraft.
IRCM and perhaps other countermeasures at the tail of the fuselage. Source
