30 September 2006

Method and apparatus for embedding data in audio signals

Method and apparatus for embedding binary data in audio signals. The magnitude of the power spectrum at the perceptual holes of each frame of a host speech utterance, may be altered so as to embed digital data. The phase spectrum at perceptually masked spectral points of each frame of a host speech utterance, may also be altered so as to embed digital data.

Current U.S. Class:	700/94 ; 380/236; 704/200.1; 704/273; 713/193
Current International Class:	G06F 17/00 (20060101); G06F 11/30 (20060101); G10L 19/00 (20060101); H04N 7/167 (20060101)
Field of Search:	700/94 713/193 704/273,200.1 882/100 380/236

Primary Examiner: Chin; Vivian
Assistant Examiner: Faulk; Devona E
Attorney, Agent or Firm: Mancini; Joseph A.

at each said masker frequency.

2. Method of claim 1,wherein said step of modifying the amplitude of said power spectrum further comprises modifying said discrete fourier transform points of said power spectrum P(k) to P'(k) by the rule:

3. Method of claim 1, wherein said step of recovering data further comprises the step de-embedding said data by the rule:

4. A method for embedding data in audio signals by altering the phase spectrum of a host signal, comprising the steps of: inputting a host signal; calculating the perceptually masked discrete fourier transform points; inputting a covert signal; digitizing said covert signal; modifying the phase of said phase spectrum by embedding therein said digitized said covert signal on a frame-by-frame basis; inverting said phase-modified said phase spectrum; obtaining time domain samples for said inverted said phase-modified spectrum; quantizing said time domain samples; transmitting said time domain samples; receiving at a receiver each quantized bit of each said frame of said time domain-sampled said inverted phase spectrum; processing said each quantized bit to obtain said masking threshold and to recover said phase; and recovering data from said embedded said covert signal; wherein said step of modifying the phase of said phase spectrum further comprises modifying said discrete Fourier transform points of said phase spectrum .phi.(k) to .phi.'(k) by the rule

at {k} such that T_q(k)<(k)<T_G(k)-5.

5. Method of claim 4, wherein said step of recovering data further comprises the step de-embedding said data by the rule:

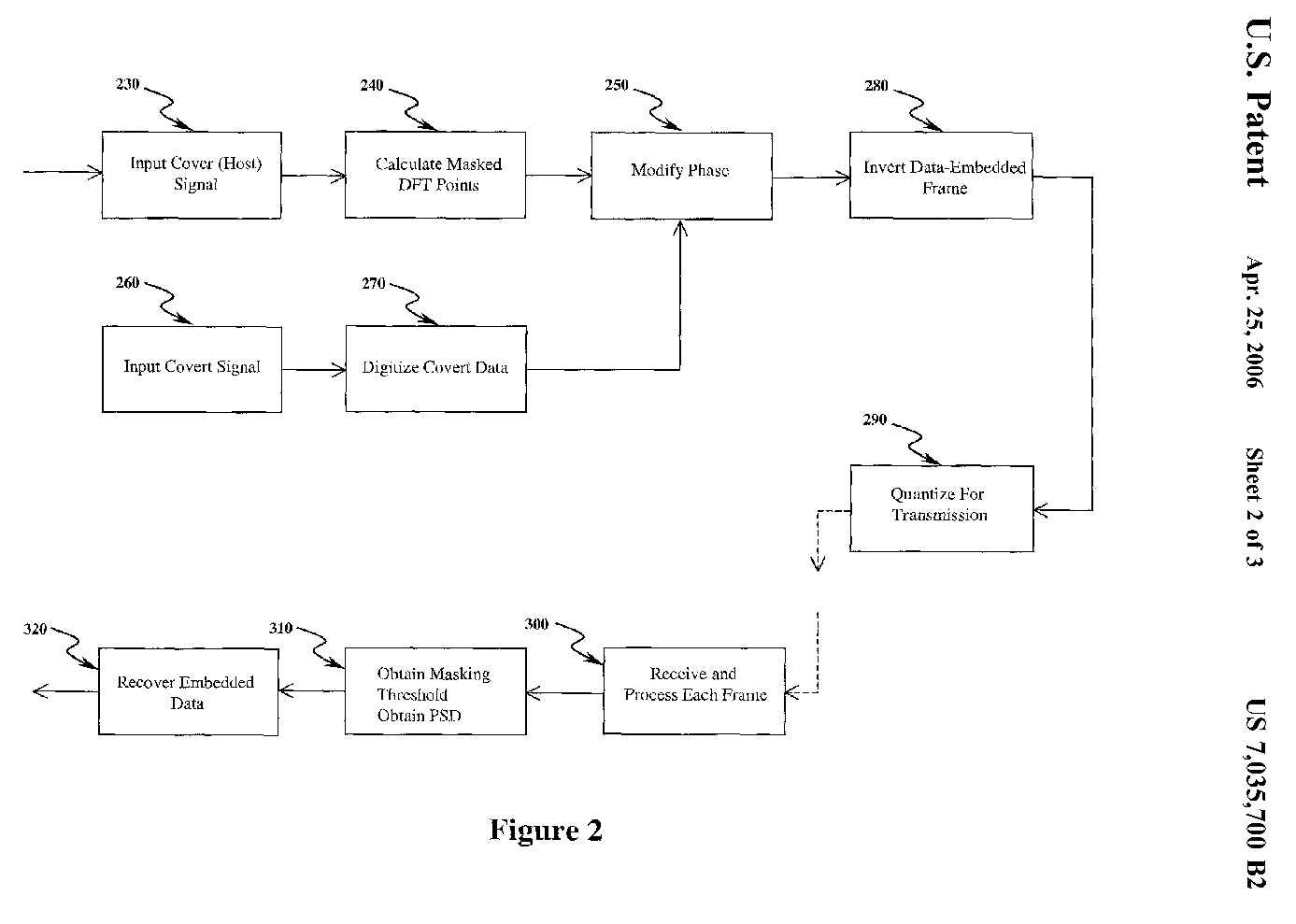

FIG. 2 is a block diagram of the procedure for embedding data into perceptually masked locations of the phase of the cover (host) signal.

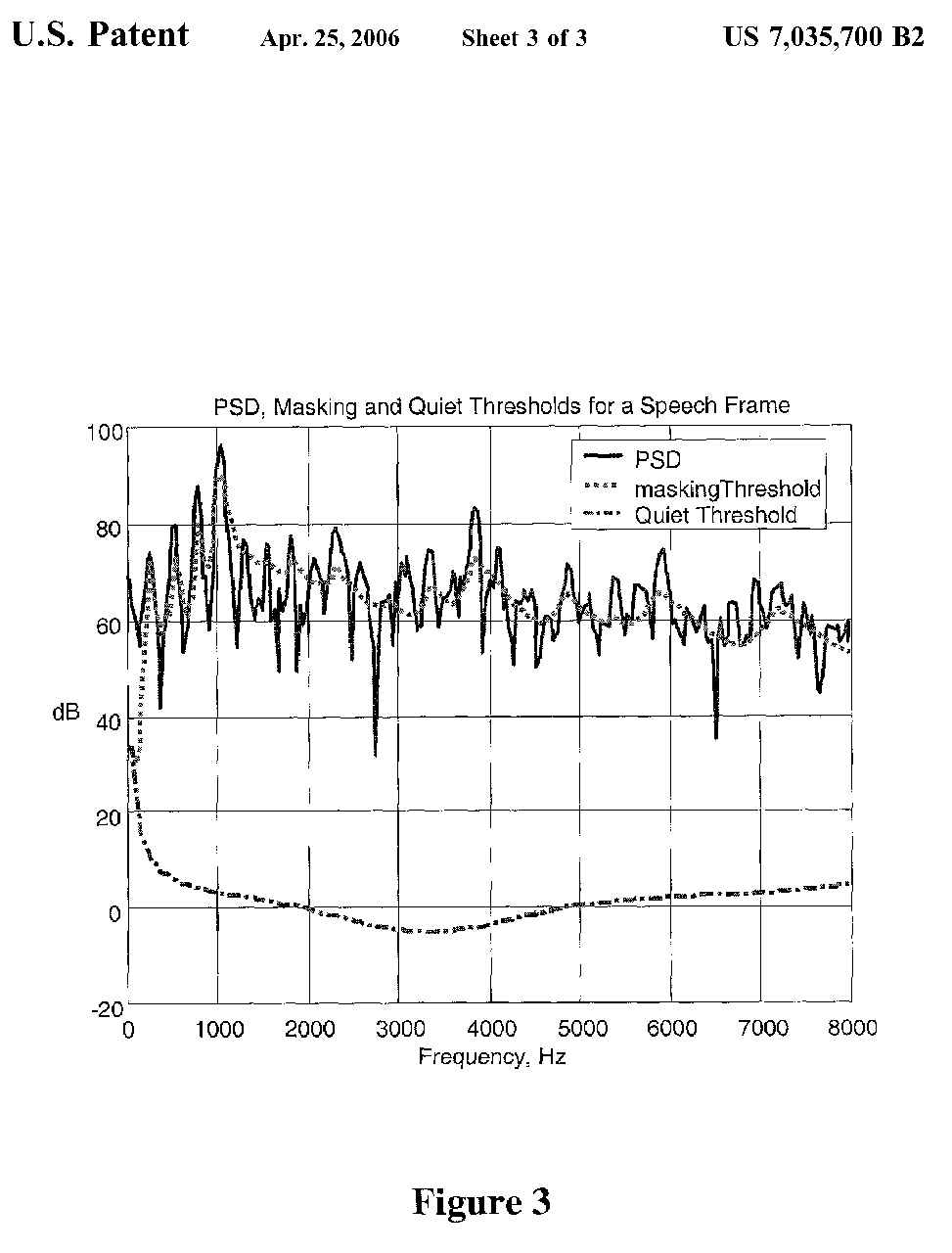

FIG. 3 is a plot of the normalized power spectral density of a frame of speech.

DETAILED DESCRIPTION OF THE PREFERRED EMBODIMENT

The present invention provides a method and apparatus for embedding binary data in audio signals using two different techniques. The first technique (see FIG. 1) alters the magnitude of the power spectrum at the perceptual holes of each frame of a host speech utterance, while the second technique alters the phase spectrum at perceptually masked spectral points (see FIG. 2).

Both of the techniques provided in this invention for embedding binary data in audio signals are based on auditory masking. Auditory masking is a perceptual property of the human auditory system in which the presence of a strong tone renders the hearing of a weaker tone in its temporal or spectral neighborhood imperceptible. Also, a pure tone is masked by a wide-band noise if the tone occurs within a critical band. Frequency masking is based on the observation that the human ear cannot perceive frequencies at lower energies when these frequencies are present in the vicinity of tone- or noise-like frequencies at higher energies. Temporal masking occurs in which a low-level tone becomes undetected when it appears immediately before or after a strong tone. Many psycho-acoustic experiments have been reported to verify the spectral and temporal masking phenomena. The design of high quality audio coders, such as Moving Picture Experts Group (MPEG) coders, is based on the property of the psychoacoustical model. As with the design of coders, the masking phenomenon can be used to embed data in an audio with negligible perceptual difference between the original, unembedded audio and the data-embedded audio.

Both techniques for embedding binary data were developed on the principle of psychoacoustical masking. The first technique alters the magnitude of the power spectrum at the perceptual holes of each frame of a host speech utterance (see FIG. 1). The second technique is based on the observation that, in general, the phase spectrum can be altered at perceptually masked spectral points (see FIG. 2). While this change in amplitude and phase modifies the waveform, perceptual quality of speech is not affected.

Referring to FIG. 1, the technique of modulation of PSD by binary data is different from prior art techniques. The PSD of the frequency-masked points is set to one of two values--low or high--depending on the bit to be embedded. The new PSD values are chosen such that they both are below the threshold of hearing but above quiet threshold, with margin for variation due to additive transmission noise. Since the data-modulated PSD is still below the hearing threshold, no difference in the perceptual quality of the embedded speech can be detected from that of the unaltered host speech. Choosing only a finite number of predetermined perceptual holes (frequencies) for embedding, presence of data in the embedded audio is concealed from unauthorized users. Additionally, an infinite number of possibilities exist for the choice of the low and high PSD values to be used for modification in accordance with data. The stego key, therefore, is formed by the location (frequency indices) and the actual PSD values used for bits 0 and 1. Using perceptually masked frequencies that are within a given range or a set of discontinuous frequencies can strengthen the key further. Lack of the stego key thus prevents unauthorized tampering of data from the embedded stego signal. Margins between data-modulated PSD values and the thresholds of quiet and hearing enable data retrieval in the presence of noise.

Referring to FIG. 2, the technique of phase variation alters the absolute phase at masked spectral points, compared to prior art methods that alter the phase at every fourth point within a given band, relative to a reference phase point. The present invention's technique ensures that changes in time samples are rendered inaudible. Also, with absolute phase change of .+-..phi., no synchronization is needed at the receiver. For both techniques, the procedure begins with the calculation of the power spectral density and the global masking threshold using tone and noise maskers present in each frame of speech.

From the experiments conducted on a limited number of utterances, it is clear that insertion of data by phase modification has the potential for successful retrieval of data of limited size (see FIG. 1). Modification of the PSD may be more robust in the presence of additive noise, because of the relative, rather than the absolute values used to detect bits (see FIG. 2). In both cases, data integrity can be increased by embedding data only in those frames that have no transition between voiced and unvoiced frames or low energy. Well-established procedures to detect voiced/unvoiced boundaries can be used to reduce the additional processing involved. Assurance of embedded information may be achieved using error detection techniques, such as inserting parity bits or a known string of bits, before and after data bits in each frame. Data size, as seen in the three utterances, can be 10 or more bits/frame, some of which may include parity and/or error correction bits. If all the frames can embed data--as with voiced and unvoiced frames without voiced/unvoiced (V/UV) boundaries in any frame--a maximum of 620 bits can be inserted in one second of audio. This is a much higher rate than what has been reported.

With successful embedding and retrieval using PSD (see FIG. 1) and phase (see FIG. 2), the present invention's two techniques can be combined to increase the volume of data embedded. This is possible because of the same set of perceptual frequency nulls used in each case. Perceptual speech quality of the resulting stego signal can then be quantified using objective quality measures.

Additionally, using the midband of frequencies in the range of 1 kHz to 3 kHz, phase may be modified by a small value at all locations irrespective of the perceptual holes. This is possible because of the imperceptible nature of the phase variation in the mid frequency range. Relative, rather than absolute phase must be used.

For embedding a large volume of data, as from another audio signal, a compact parametric or transform domain model of the covert message may be used. With 54 bits per frame from an Linear Predictive Code (LPC)-10 model, for instance, several frames of a cover signal may be needed to insert one frame of covert speech. Depending on the expected quality of the retrieved covert message audio, other compact representations, such as DCT and Fourier-Bessel coefficients, may be used for embedding.

Voiced speech arising from the resonance of the vocal tract typically has a larger number of masked points. Therefore, a known cover signal containing primarily voiced speech can be used for inserting a large number of message bits. Fixed and known DFT points carrying the hidden message enables fast retrieval of the message without resorting to threshold calculations for every received stego frame. Use of such a fixed cover signal may not be effective for covert communication of different battlefield messages; many civilian applications, however, can benefit from employing a known utterance for conveying different information.

Embedding of data by modifying the power spectral density and the phase of speech frames at perceptually masked frequency points is reported. Based on a limited number of tests, phase embedding appears to result in better data retrieval. Informal listening tests have shown that the perceptual quality of the data-inserted utterances remained the same as the original cover audio. Higher rate of data recovery may be possible by choosing only the voiced or unvoiced frames and excluding frames with V/UV boundaries or the frames with low energy. More data may be inserted by combining the two methods without altering the perceptual quality of the cover audio.

Frame PSD Modification

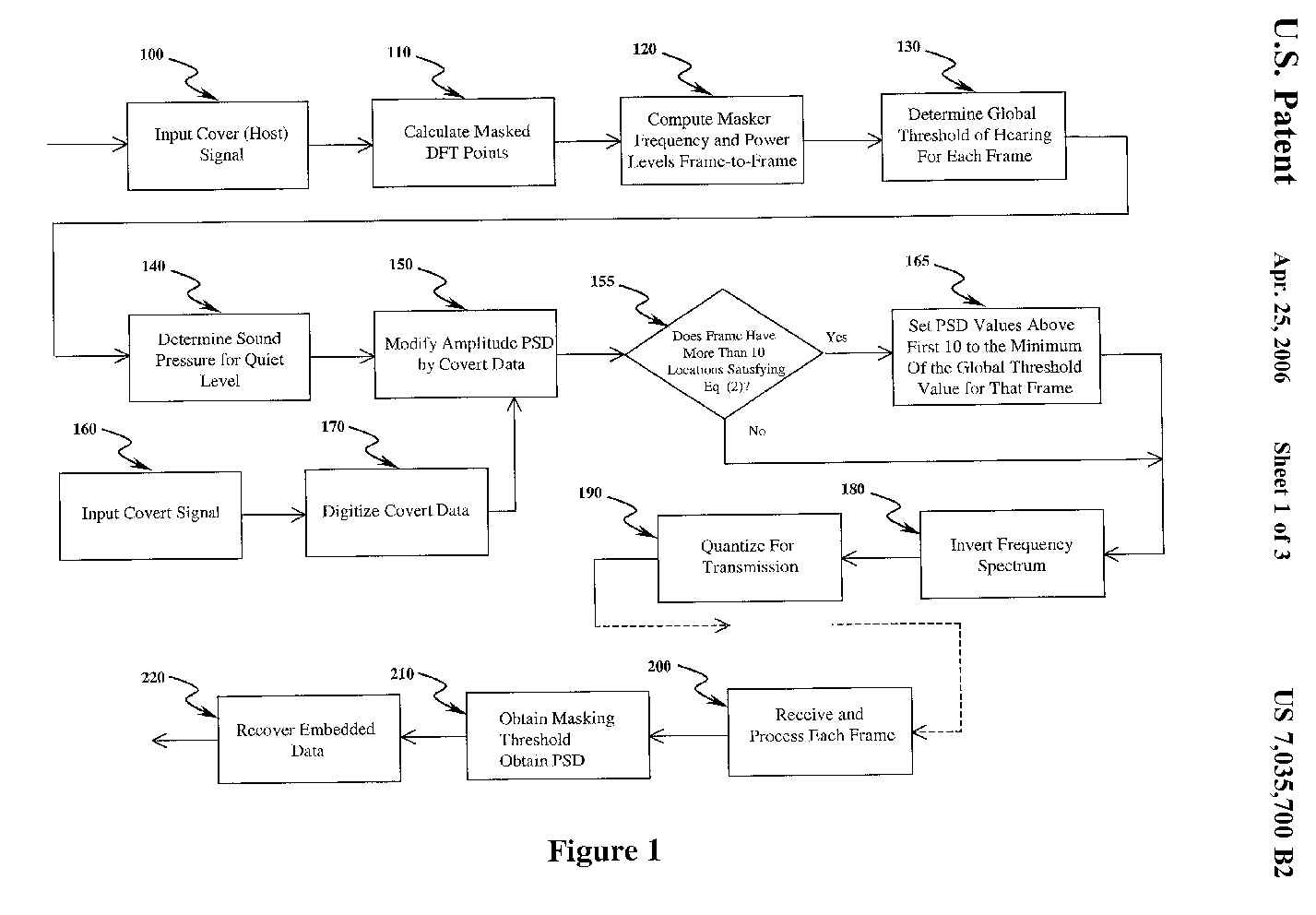

Referring to FIG. 1, a cover or "host" signal is input 100. To exploit the masking property for data embedding, the perceptually masking threshold level discrete fourier transform (DFT) points are calculated 110. For an utterance of speech the masker frequencies--tonal and noise-like--and their power levels are computed from frame to frame 120. A global threshold of hearing based on the maskers is determined for each frame 130. Also, the sound pressure level for quiet, below which a signal is inaudible, is obtained 140.

As an example, FIG. 3 shows the normalized power spectral density (PSD), absolute quiet threshold, and threshold of hearing for a frame of speech. The lowest spectral component around 2800 Hz in this figure, for instance, indicates that this component, being below the masking threshold level at that frequency, cannot be perceived in hearing. We notice that with the threshold at approximately 65 dB and the PSD at 32 dB, raising the PSD of the signal at 2800 Hz by as much as 30 dB will still render the component inaudible. Many other such `psychoacoustical perceptual holes` can be detected in several frequency ranges. The PSD values at these holes can be modified by information to be embedded without affecting the message quality of the frame. This is the basis used in the present work for embedding data in audio. Experiments have been conducted to demonstrate the capability of embedding imperceptible tones to represent concealed data.

Thresholds are obtained based on the example given below. At a sampling rate of 16 kHz with 16 bits per sample, frames of 512 samples are segmented using a Hanning (raised cosine) window. Power spectral density, normalized to 96 dB, was obtained using a 512-point Discrete Fourier Transform (DFT). Power normalization enables the use of the same masker spreading function at each frequency. Absolute quiet threshold, based on young listeners with acute hearing are given by

where f denotes frequency in Hz, is calculated. Following the procedure given in [19, 20], frequency maskers based on tones and wideband noise in each critical band, and the global masking threshold T.sub.G(k) at each frequency index k are calculated for each frame. From these values, perceptual holes or frequency indices {k} such that

were determined. If there are at least 10 frequency indices at which the PSD of a frame is down by at least 5 dB from the corresponding masking threshold values, but above the quiet threshold, that frame is considered suitable for data embedding. Because of the relatively high quiet threshold levels at low and high frequencies (below 100 Hz and above 7000 Hz) only, the holes in the range of 100 6000 Hz are used. (Avoiding high frequency range for spectral modification also retains the embedded data when speech is low-pass filtered or otherwise reduced in bandwidth for compression or coding.)

A "covert" signal is input 160, then digitized 170 and used to modify the amplitude 150 of the PSD. The PSD values {P(k)} of a frame with 10 or more perceptual holes are modified 150 to {P'(k)} by the data bits {b(k), k=1, . . . 10} as follows.

(The approximation above results from the normalization of PSD to a fixed value of 96 dB, which causes a different power scale factor, added to each frame.) If it is determined 155 that a frame has more than 10 locations satisfying Eq. (2), the PSD values at locations above the first 10 are set to the minimum of the global threshold value for that frame 165. This reduces the possibility of channel noise, for example, raising the PSD values at the receiver to values comparable to those at the data-embedded locations.

After making the modified PSD values of the discrete Fourier transform of the frame symmetrical, the frequency spectrum of the data-embedded frame is inverted 180 to obtain the time domain samples for the modified frame. The samples are then quantized 190 for transmission.

At the receiver, the quantized bit for each frame are received 200 and processed to obtain the masking threshold and the PSD 210. Allowing for changes in the PSD, due to quantization, the embedded data {d(k), k=1 . . . 10} are recovered 220 as

where {n} are the frequency indices at which P.sub.r, the received signal PSD values are above the quiet threshold but below the masking threshold by at least 5 dB. Frame Phase Modification

Referring to FIG. 2 modification of the phase of the covert data is described. This technique is based on the observation that, in general, the phase spectrum can be altered at perceptually masked spectral points. While this change in phase modifies the waveform, perceptual quality of speech is not affected, particularly if the phase change occurs in a midband of frequencies. A cover or "host" signal is input 230 and the perceptually masked DFT points are calculated 240. The covert signal is input 260, then digitized 270 in using any standard method of audio compression, as employed in the technique represented in FIG. 1. The phase is then modified 250. Based on the previous art reported, encoding of data bits can be accomplished by altering the phase of every fourth point (after 2 kHz) in a 2048-point DFT by .+-.(.pi./8) radian relative to a reference point phase [9]. With this differential phase change, successful encoding and decoding for storage media requiring simple synchronization is possible. Instead of differential phase change, the present invention alters the absolute phase at masked spectral points. This ensures that changes in time samples are rendered inaudible. Also, with absolute phase change of .+-..phi., no synchronization is needed at the receiver. At other masked locations the magnitude and phase are left unchanged. The phase is modified 250 as follows:

at {k} such that T_q(k)<(k)<T_G(k)-5.

After making the modified phase values of cover signal, the data-embedded frame is inverted in 280 to obtain the time domain samples for the modified frame. The samples are then quantized 290 for transmission.

At the receiver, the quantized bits for each frame are received and processed 300 to obtain the masking threshold and to recover the phase 310. Allowing for changes in the phase, due to quantization, the embedded data {d(k), k=1 . . . 10} are recovered 320 as follows:

While the preferred embodiments have been described and illustrated, it should be understood that various substitutions, equivalents, adaptations and modifications of the invention may be made thereto by those skilled in the art without departing from the spirit and scope of the invention. Accordingly, it is to be understood that the present invention has been described by way of illustration and not limitation.
